Product CatalogPart Number
ART2K5TFUSJ
Manufacturer
Ampleon USA Inc.Description
RF MOSFET 1230
Datasheet
DatasheetPackage
ACC-1230-6F-2
In Stock
95,039 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ART2K5TFUSJ
ART2K5TFUSJ

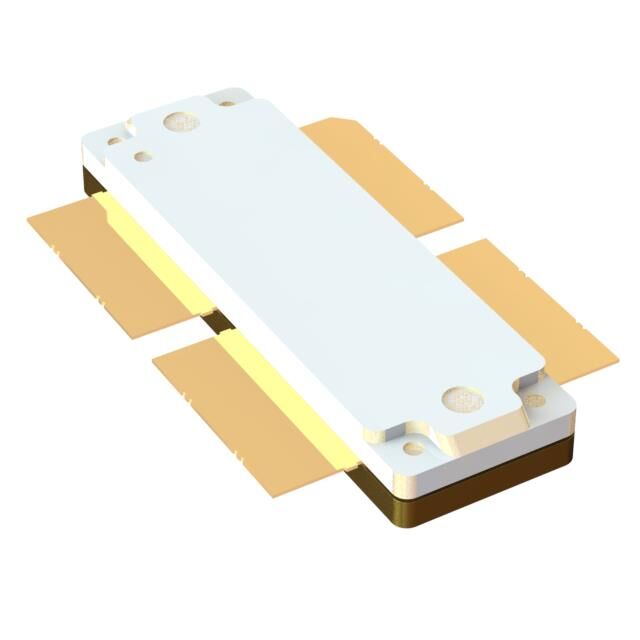

lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 75 V 100 mA 1MHz ~ 400MHz 29.5dB 2500W ACC-1230-6F-2
Quick Inquiry
ART2K5TFUSJ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Ampleon USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS (Dual) |
| Configuration | 2 N-Channel |
| Frequency | 1MHz ~ 400MHz |
| Gain | 29.5dB |
| Voltage - Test | 75 V |
| Current Rating (Amps) | 2.8µA |
| Noise Figure | - |
| Current - Test | 100 mA |
| Power - Output | 2500W |
| Voltage - Rated | 200 V |
| Mounting Type | Surface Mount |
| Package / Case | ACC-1230-6F-2 |
| Supplier Device Package | ACC-1230-6F-2 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | ART2K5TFUGJ | ART2K0FEGJ | ART2K0FESJ | ART2K0FESU |
| Manufacturer | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET 1230 | RF MOSFET LDMOS 65V CDFM4 | RF MOSFET LDMOS 65V SOT539BN | RF MOSFET LDMOS 65V SOT539BN |
| Series | - | ART | - | ART |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tray |
