AS-6.144-22-2020-SMD-TR

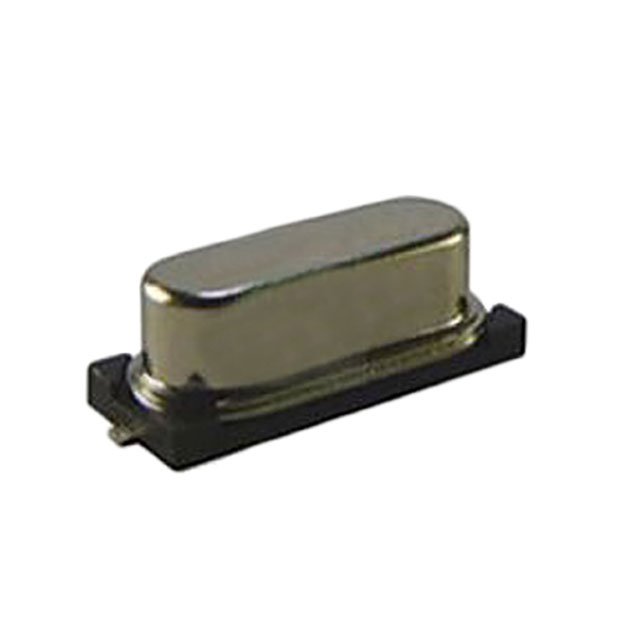

lmages are for reference only.AS-6.144-22-2020-SMD-TR
CRYSTAL 6.1440MHZ 22PF SMD
DatasheetHC-49/US
30,507 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.144 MHz ±20ppm Crystal 22pF 80 Ohms HC-49/US
AS-6.144-22-2020-SMD-TR
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Raltron Electronics |
| Series | AS-SMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 6.144 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 22pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | HC-49/US |
| Size / Dimension | 0.472" L x 0.189" W (12.00mm x 4.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | AS-6.144-22-2020-SMD-TR | AS-10.000-18-EXT-SMD-TR | AS-10.000-18-EXT-SMD-TR | AS-10.000-20-3030-SMD-TR |
| Manufacturer | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 6.1440MHZ 22PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 20PF SMD |
| Series | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |

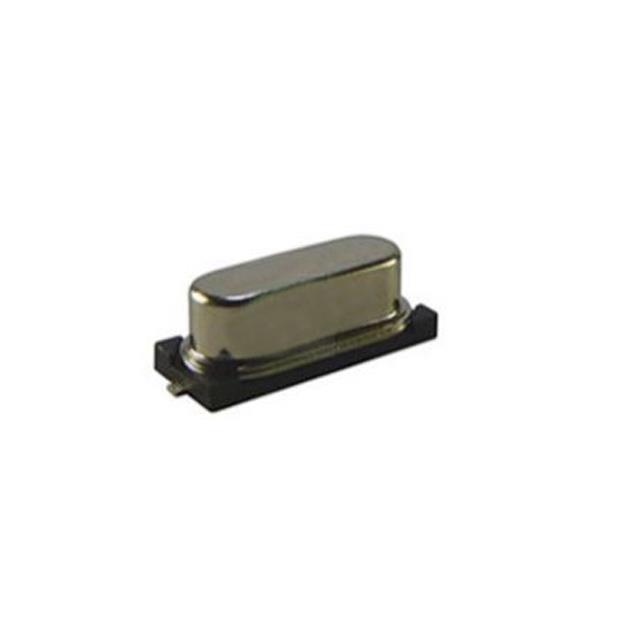

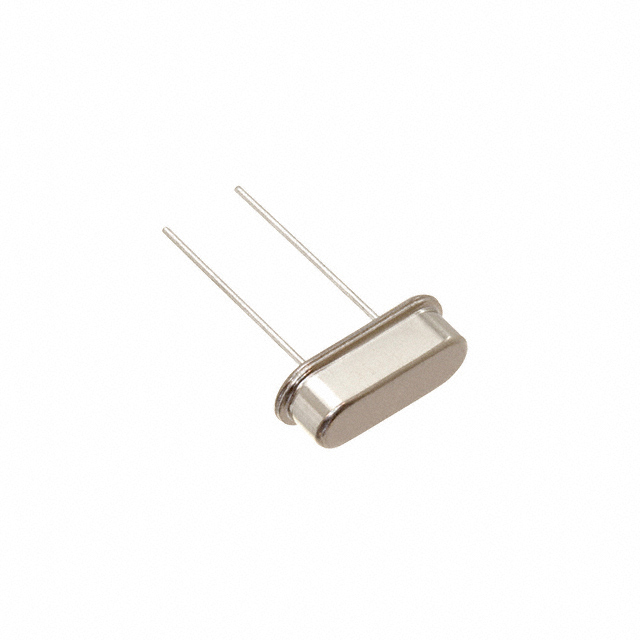

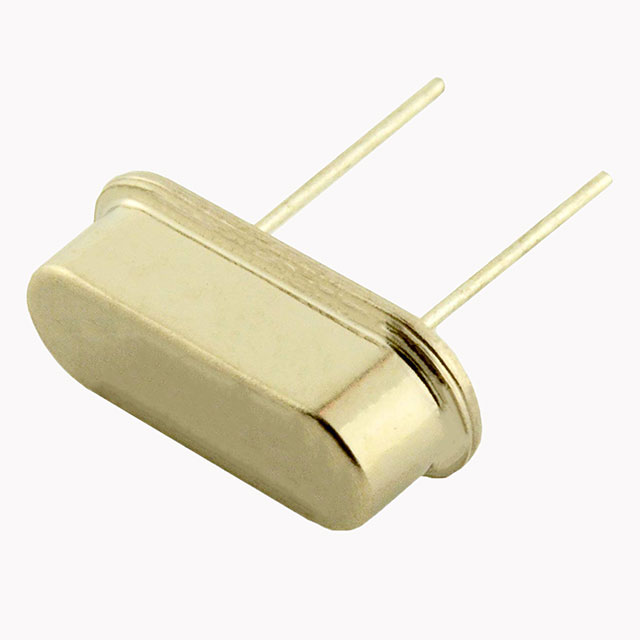

Recommended Products
