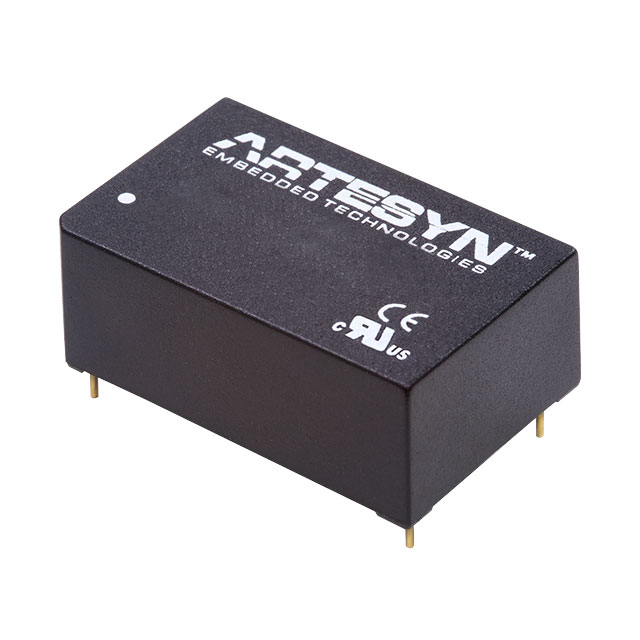

ASA01CC12-M
lmages are for reference only.ASA01CC12-M
DC DC CONVERTER +/-15V 5W
Datasheet24-DIP Module, 6 Leads
54,183 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 9V - 18V Input
ASA01CC12-M
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | ASA6W-M (6W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 6 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ASA01CC |
| Voltage - Isolation | 4 kV |
| Product Attribute |  |
 |
 |
 |

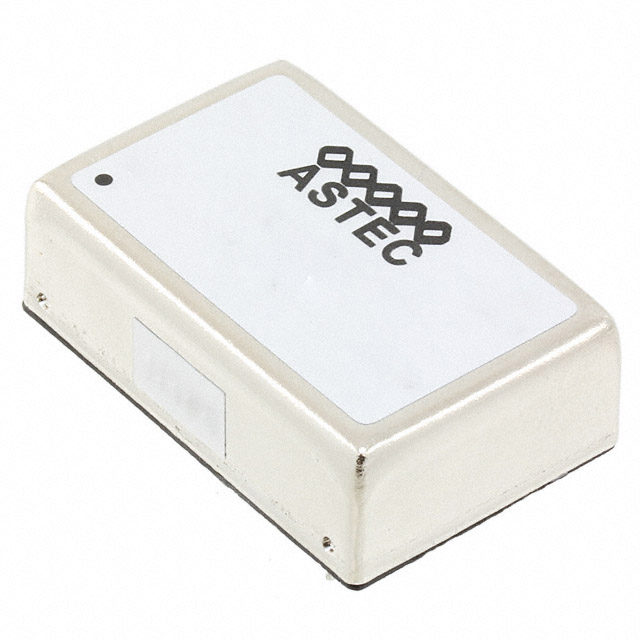

| Part Number | ASA01A12-M | ASA01A18-L | ASA01A18-LS | ASA01A24-M |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 5V 5W | DC DC CONVERTER 5V 6W | DC DC CONVERTER 5V 6W | DC DC CONVERTER 5V 5W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tube |
