ASCO2-20.000MHZ-EK-T3

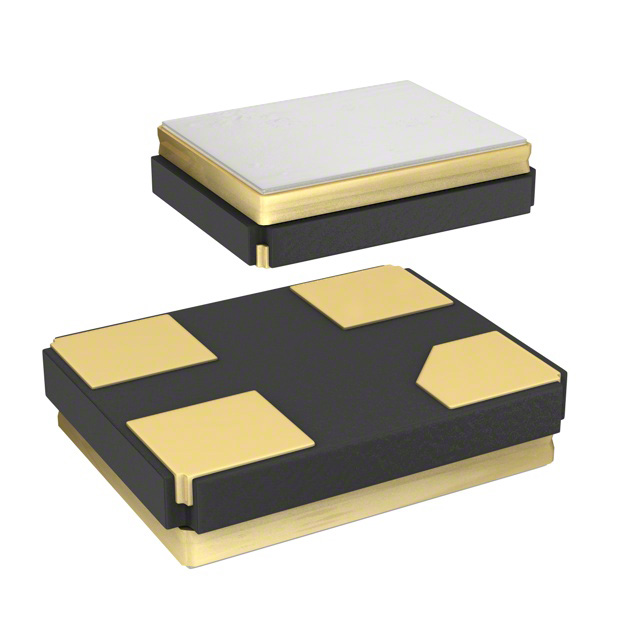

lmages are for reference only.ASCO2-20.000MHZ-EK-T3
XTAL OSC XO 20.0000MHZ CMOS SMD
Datasheet4-SMD, No Lead
75,795 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
ASCO2-20.000MHZ-EK-T3
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASCO |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 20 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±30ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 3mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ASCO2-1.000MHZ-EK-T3 | ASCO2-1.000MHZ-LB-T3 | ASCO2-1.000MHZ-LB-T3 | ASCO2-1.544MHZ-EK-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 1.0000MHZ CMOS SMD | XTAL OSC XO 1.0000MHZ CMOS SMD | XTAL OSC XO 1.0000MHZ CMOS SMD | XTAL OSC XO 1.5440MHZ CMOS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
