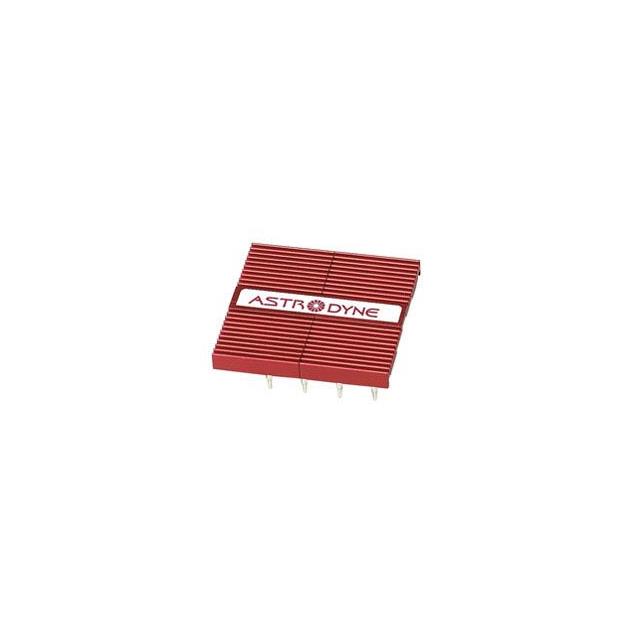

ASD15H-48S5
lmages are for reference only.ASD15H-48S5
Isolated and Regulated 15 WATT O
Datasheet8-DIP Module, 6 Leads
87,175 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 3A 20V - 75V Input
ASD15H-48S5
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | ASD15H (15W) |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 6 Leads |
| Size / Dimension | 2.00" L x 1.50" W x 0.45" H (50.8mm x 38.1mm x 11.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
 |

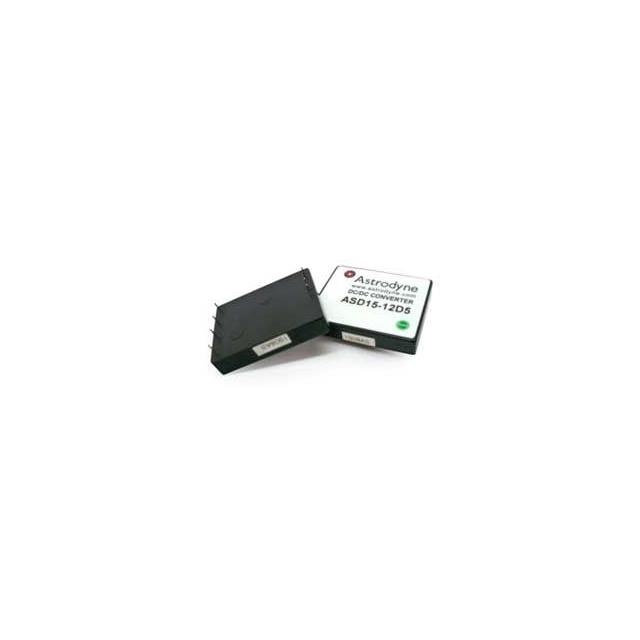

| Part Number | ASD15H-48S12 | ASD15-12D15 | ASD15-12D15 | ASD15-12D5 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | Isolated and Regulated 15 WATT O | Isolated and Regulated 15 WATT M | Isolated and Regulated 15 WATT M | Isolated and Regulated 15 WATT M |
| Series | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
