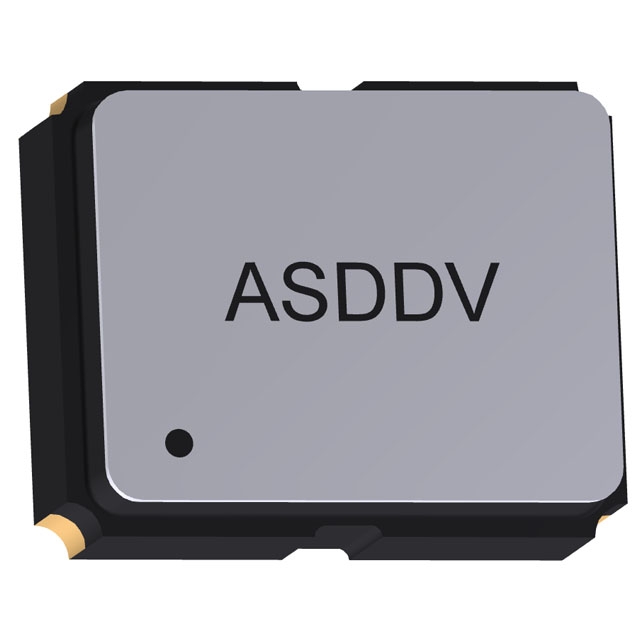

ASDDV-40.000MHZ-LC-T
lmages are for reference only.ASDDV-40.000MHZ-LC-T
OSC XO 40.000MHZ 1.6V ~ 3.6V CMO
Datasheet4-SMD, No Lead
11,294 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 MHz XO (Standard) HCMOS, LVCMOS Oscillator 1.8V ~ 3.3V Enable/Disable 4-SMD, No Lead
ASDDV-40.000MHZ-LC-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASDDV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 40 MHz |
| Function | Enable/Disable |
| Output | HCMOS, LVCMOS |
| Voltage - Supply | 1.8V ~ 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

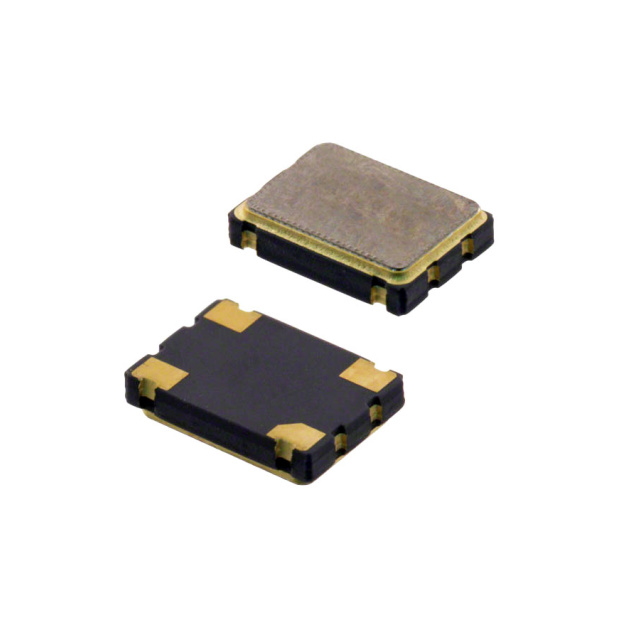

| Part Number | ASDDV-40.000MHZ-LC-T3 | ASDDV-1.8432MHZ-LC-T | ASDDV-1.8432MHZ-LC-T3 | ASDDV-10.000MHZ-LC-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OSC XO 40.000MHZ 1.6V ~ 3.6V CMO | OSC XO 1.8432MHZ 1.6V ~ 3.6V CMO | OSC XO 24.576MHZ CMOS SMD | OSC XO 10.000MHZ 1.6V ~ 3.6V CMO |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
