ASDMB-5.000MHZ-LC-T
lmages are for reference only.ASDMB-5.000MHZ-LC-T
MEMS OSC XO 5.0000MHZ LVCMOS SMD
Datasheet4-SMD, No Lead
43,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
ASDMB-5.000MHZ-LC-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASDMB, Pure Silicon™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 5 MHz |
| Function | Standby (Power Down) |
| Output | LVCMOS |
| Voltage - Supply | 1.8V ~ 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 16mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

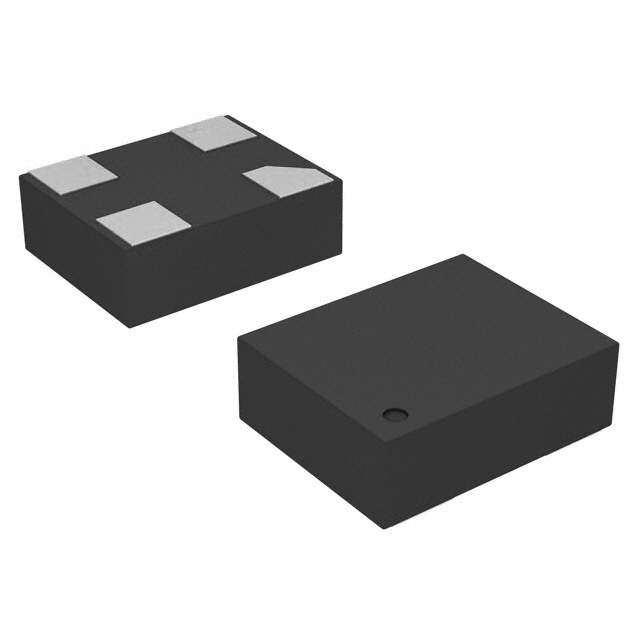

| Part Number | ASDM1-1.8432MHZ-LC-T | ASDM1-10.000MHZ-LC-T | ASDM1-100.000MHZ-LC-T | ASDM1-11.0592MHZ-LC-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 1.8432MHZ LVCMOS SMD | MEMS OSC XO 10.0000MHZ LVCMOS | MEMS OSC XO 100.0000MHZ LVCMOS | MEMS OSC XO 11.0592MHZ LVCMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
