Product CatalogPart Number
ASE 1 D-RA
Manufacturer
Knitter-SwitchDescription
SWITCH SLIDE 1-POLE ON-ON
Datasheet
DatasheetPackage
-
In Stock
27,273 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASE 1 D-RA
ASE 1 D-RA
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch SPDT Through Hole, Right Angle
Quick Inquiry
ASE 1 D-RA
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | Knitter-Switch |
| Series | ASE |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPDT |
| Contact Timing | Not Specified |
| Switch Function | On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 48 V |
| Voltage Rating - DC | 48 V |
| Actuator Type | Standard |
| Actuator Length | 2.80mm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Features | - |
| Operating Temperature | -20°C ~ 85°C |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Switch Travel | - |
| Mechanical Life | 60,000 Cycles |
| Electrical Life | - |
| Operating Force | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|

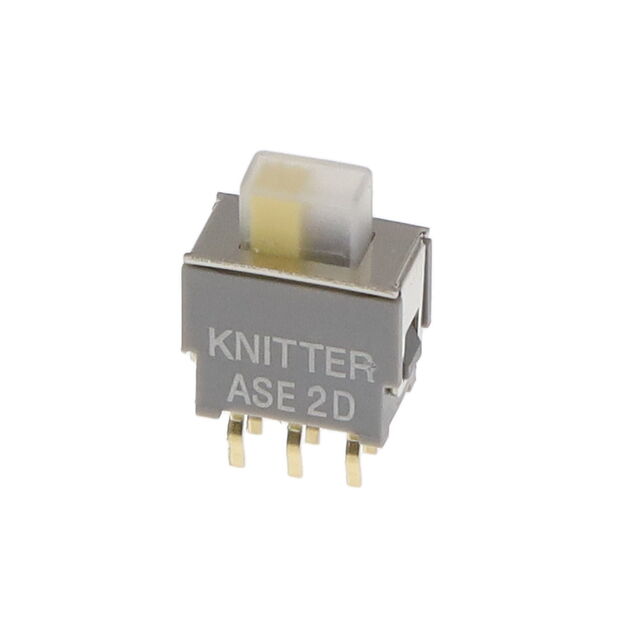

| Part Number | ASE 1 D | ASE 1 E | ASE 2 D | ASE 2 E-RA |
| Manufacturer | Knitter-Switch | Knitter-Switch | Knitter-Switch | Knitter-Switch |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE 1-POLE ON-ON | SWITCH SLIDE 1-POLE ON-OFF-ON | SWITCH SLIDE 2-POLE ON-ON | SWITCH SLIDE 2-POLE ON-OFF-ON |
| Series | ASE | ASE | ASE | ASE |
| Packaging | Box | Box | Box | Box |
