ASEAIG-40.000MHZ-X-K-S-T

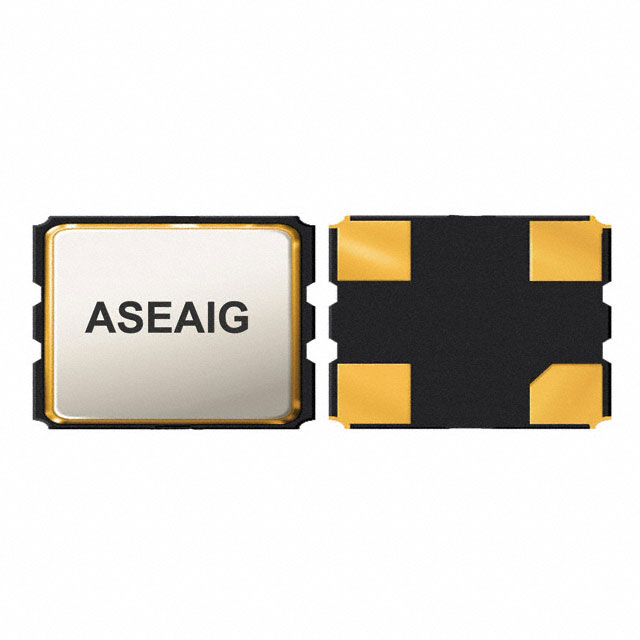

lmages are for reference only.ASEAIG-40.000MHZ-X-K-S-T
OSC XO 40.000MHZ 3.3V CMOS SMD
Datasheet4-SMD, No Lead
41,074 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
ASEAIG-40.000MHZ-X-K-S-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASEAIG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 40 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±30ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 13mA |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

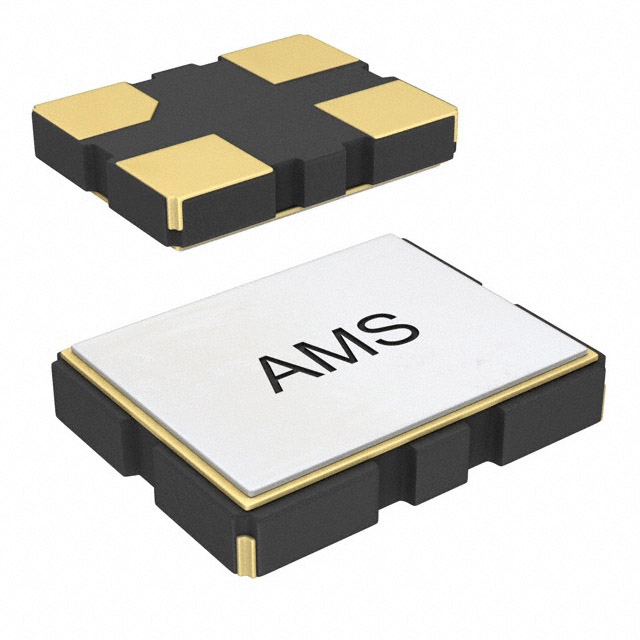

| Part Number | ASEAIG-40.000MHZ-C-S-T | ASE-1.8432MHZ-C-T3 | ASE-1.8432MHZ-L-C-T | ASE-1.8432MHZ-L-R-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OSC XO 40.0000MHZ 3.3V CMOS SMD | XTAL OSC XO 1.8432MHZ CMOS SMD | XTAL OSC XO 1.8432MHZ CMOS SMD | XTAL OSC XO 1.8432MHZ CMOS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
