ASFL1-16.000MHZ-ER-T

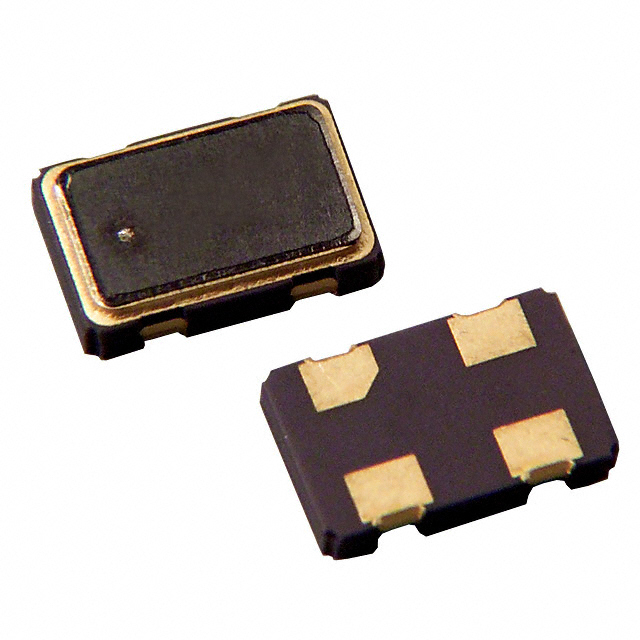

lmages are for reference only.ASFL1-16.000MHZ-ER-T
XTAL OSC XO 16.0000MHZ HCMOS TTL
Datasheet4-SMD, No Lead
67,892 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
ASFL1-16.000MHZ-ER-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASFL1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 16 MHz |
| Function | Enable/Disable |
| Output | HCMOS, TTL |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 15mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | ASFL1-16.000MHZ-EC-T | ASFL1-16.000MHZ-EK-T | ASFL1-16.000MHZ-ER-T | ASFL1-16.000MHZ-L-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 16.0000MHZ HCMOS TTL | XTAL OSC XO 16.0000MHZ HCMOS TTL | XTAL OSC XO 16.0000MHZ HCMOS TTL | XTAL OSC XO 16.0000MHZ HCMOS TTL |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
