ASG-C-V-A-200.000MHZ-T

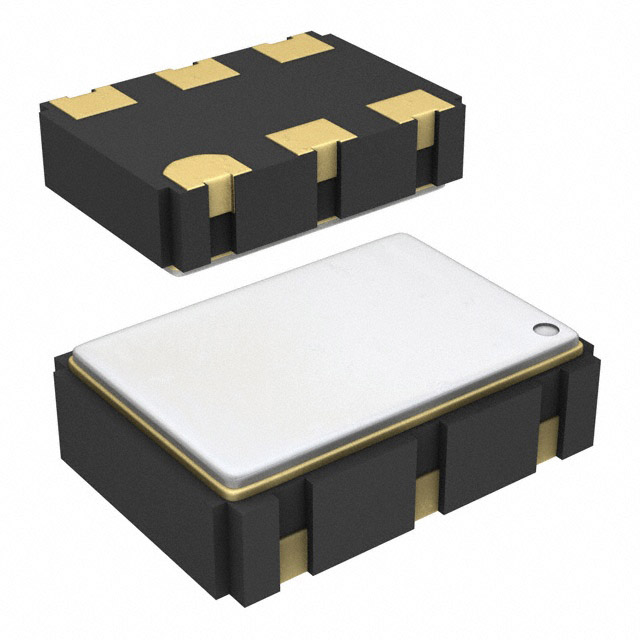

lmages are for reference only.ASG-C-V-A-200.000MHZ-T
XTAL OSC VCXO 200.0000MHZ LVCMOS
Datasheet6-SMD, No Lead
29,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200 MHz VCXO LVCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
ASG-C-V-A-200.000MHZ-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASG-C |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCXO |
| Frequency | 200 MHz |
| Function | Enable/Disable |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±35ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 45mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ASG-C-V-A-20.000MHZ-T | ASG-C-V-A-200.000MHZ | ASG-C-V-A-10.000MHZ-T | ASG-C-V-A-100.000MHZ-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCXO 20.0000MHZ LVCMOS | XTAL OSC VCXO 200.0000MHZ LVCMOS | XTAL OSC VCXO 10.0000MHZ LVCMOS | XTAL OSC VCXO 100.0000MHZ LVCMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
