ASGTX-C-120.000MHZ-1

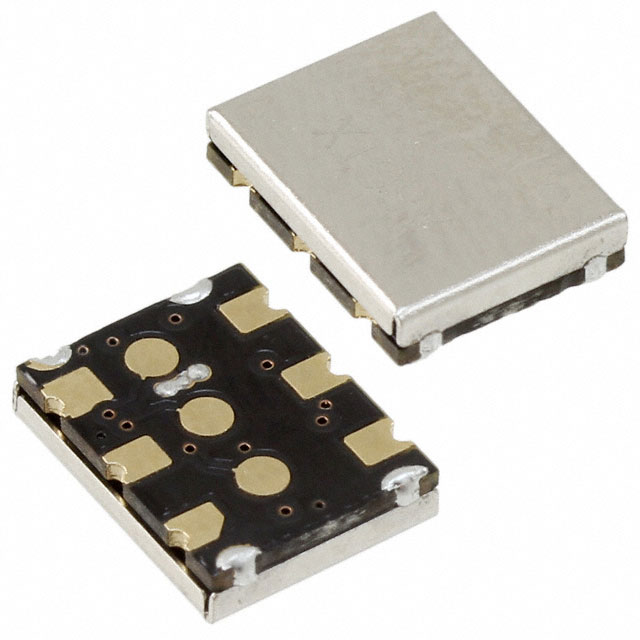

lmages are for reference only.ASGTX-C-120.000MHZ-1
XTAL OSC VCTCXO 120.0000MHZ LVCM
Datasheet6-SMD, No Lead
77,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 MHz VCTCXO LVCMOS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead
ASGTX-C-120.000MHZ-1
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASGTX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 120 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 3.135V ~ 3.465V |
| Frequency Stability | ±1ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -30°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 45mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Height - Seated (Max) | 0.088" (2.24mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | ASGTX-C-120.000MHZ-1-T | ASGTX-C-120.000MHZ-1-T2 | ASGTX-C-120.000MHZ-2 | ASGTX-C-120.000MHZ-2-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 120.0000MHZ LVCM | XTAL OSC VCTCXO 120.0000MHZ LVCM | XTAL OSC VCTCXO 120.0000MHZ LVCM | XTAL OSC VCTCXO 120.0000MHZ LVCM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
