ASI09N27MFD-03Q
lmages are for reference only.ASI09N27MFD-03Q
BUZZER MAGN 3V 0.38 X 0.38 W TH
Datasheet-
24,136 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buzzers Indicator, Internally Driven Magnetic 3 V 30mA 2.7kHz 80dB @ 3V, 10cm Through Hole Solder Pads
ASI09N27MFD-03Q
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | Mallory Sonalert Products Inc. |
| Series | ASI |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 2.7kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | Solder Pads |
| Size / Dimension | 0.378" L x 0.378" W (9.60mm x 9.60mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

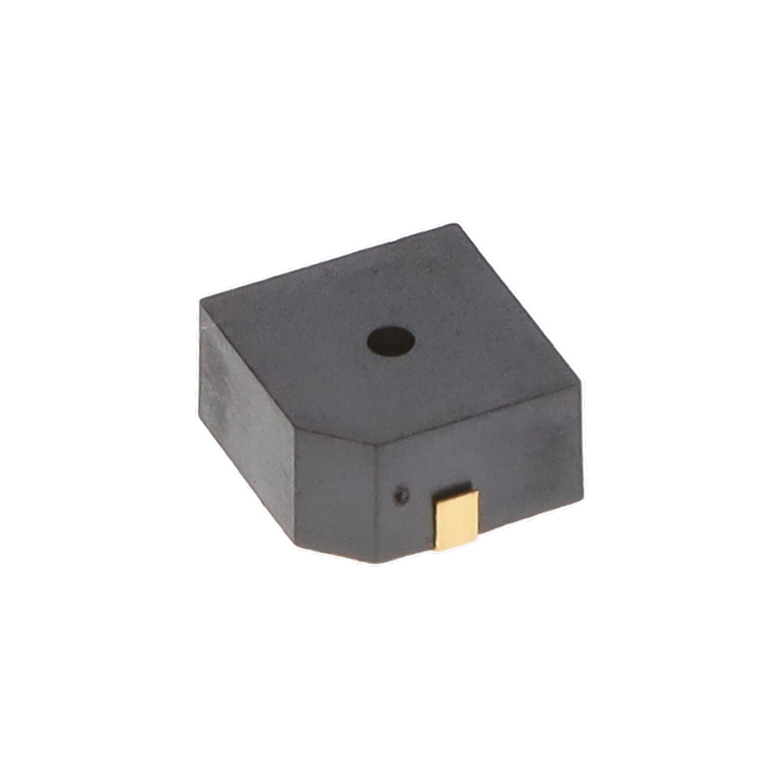

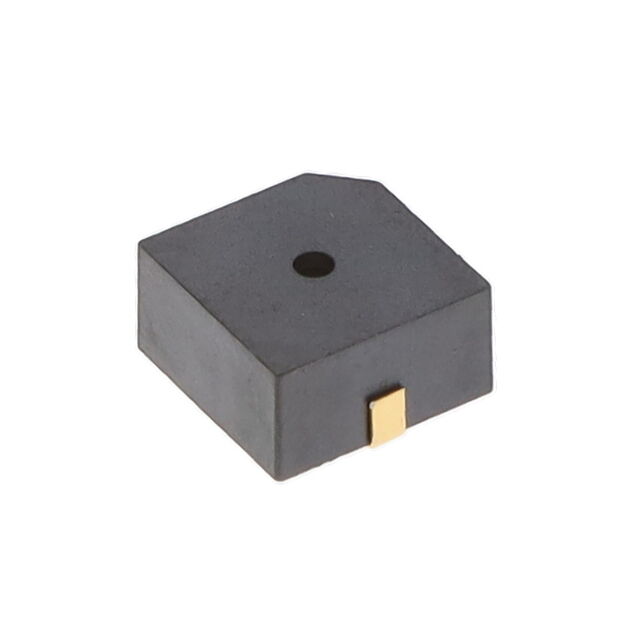

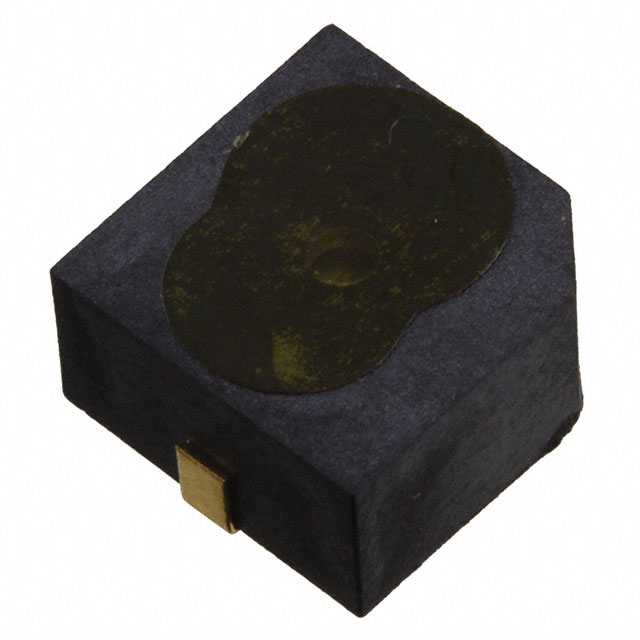

| Part Number | ASI09N27MFD-03TRQ | ASI09N27MFD-05Q | ASI09N27MFD-05TRQ | ASI09N27M-05Q |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BUZZER MAGN 3V 0.38 X 0.38 W SMD | BUZZER MAGN 5V 0.38 X 0.38 W TH | BUZZER MAGN 5V 0.38 X 0.38 W SMD | BUZZER MAGN 5V9.5X9.5MM SMD |
| Series | AS | ASI | AS | ASI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Strip |
