Product CatalogPart Number
ASL-1500
Manufacturer
Astrodyne TDIDescription
AC/DC CONVERTER 3.3V 15W
Datasheet
DatasheetPackage
-
In Stock
10,587 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASL-1500
ASL-1500
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 3.3V 90 ~ 264 VAC Input
Quick Inquiry
ASL-1500
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | ASL15 (15W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 50°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.10" W x 0.87" H (76.2mm x 53.3mm x 22.2mm) |
| Approval Agency | CB, cULus |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 15W |
| Features | Adjustable Output, Universal Input |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

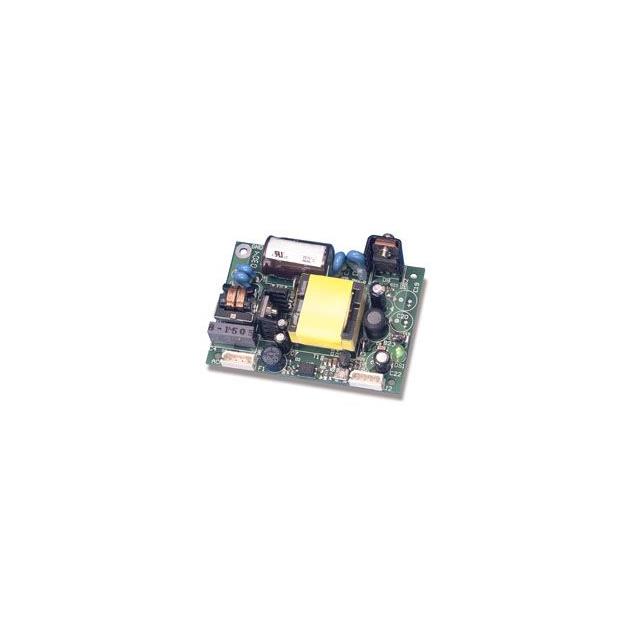

| Part Number | ASL-1503 | ASL-1505 | ASL-0101 | ASL-0102 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | AC/DC CONVERTER 15V 15W | AC/DC CONVERTER 24V 12W | AC/DC CONVERTER 5V 10W | AC/DC CONVERTER 12V 10W |
| Series | ASL15 (15W) | ASL150 (150W) | ASL10 (10W) | ASL10 (10W) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
