ASMBJ130CA-HF

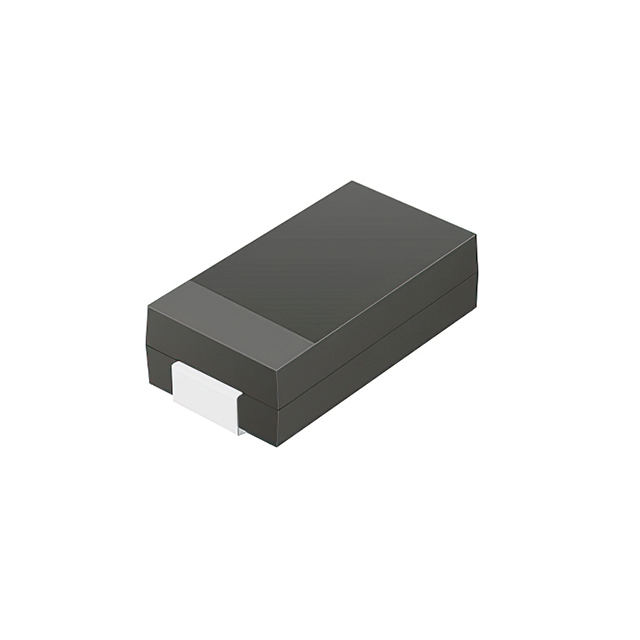

lmages are for reference only.ASMBJ130CA-HF
DIODE TVS 130V 600W SMB BI-DIR A
DatasheetDO-214AA, SMB
97,565 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
209V Clamp 2.9A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
ASMBJ130CA-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 130V |
| Voltage - Breakdown (Min) | 144V |
| Voltage - Clamping (Max) @ Ipp | 209V |
| Current - Peak Pulse (10/1000µs) | 2.9A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | ASMBJ130 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | ASMBJ130A-HF | ASMBJ13A-HF | ASMBJ13CA-HF | ASM24BC-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE TVS 130V 600W SMB UNI-DIR | DIODE TVS 13V 600W SMB UNI-DIR A | DIODE TVS 13V 600W SMB BI-DIR AU | AUTOMOTIVE DIODE ESD 24VWM 364W |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
