Product CatalogPart Number
ASPI-1306T-470M-T
Manufacturer
Abracon LLCDescription
FIXED IND 47UH 2.6A 86 MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
23,349 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASPI-1306T-470M-T
ASPI-1306T-470M-T
lmages are for reference only.Payment Methods
Delivery Services
47 µH Unshielded Drum Core, Wirewound Inductor 2.6 A 86mOhm Max Nonstandard
Quick Inquiry
ASPI-1306T-470M-T
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ASPI-1306T |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 86mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | ASPI-1306T-100M-T | ASPI-1306T-101M-T | ASPI-1306T-102M-T | ASPI-1306T-150M-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 4.3A 31 MOHM SMD | FIXED IND 100UH 1.8A 190MOHM SMD | FIXED IND 1MH 560MA 1.8 OHM SMD | FIXED IND 15UH 4A 36 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ASPI-0309-100M-T4
Abracon LLC
ASPI-0309-2R2M-T4
Abracon LLC
ASPI-0309-330M-T4
Abracon LLC
ASPI-0309-330M-T4
Abracon LLC
ASPI-0309-470M-T4
Abracon LLC
ASPI-0310FS-100M-T2
Abracon LLC
ASPI-0310FS-150M-T2
Abracon LLC
ASPI-0310FS-1R0N-T2
Abracon LLC

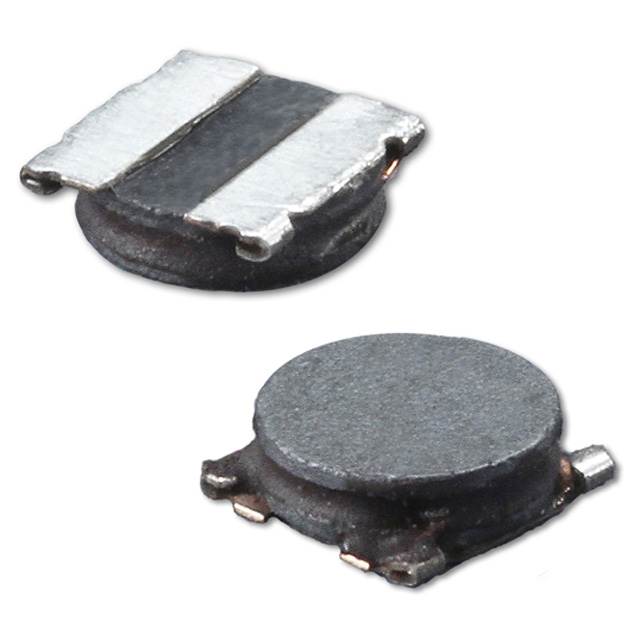

ASPI-0310FS-1R2N-T2
