Product CatalogPart Number
AST0411504
Manufacturer
METZ CONNECT USA Inc.Description
TERM BLOCK 15POS 45DEG 2.5MM PCB
Datasheet
DatasheetPackage
-
In Stock
41,076 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AST0411504
AST0411504
lmages are for reference only.Payment Methods
Delivery Services
15 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.098" (2.50mm) Through Hole
Quick Inquiry
AST0411504
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Number of Levels | 1 |
| Positions Per Level | 15 |
| Pitch | 0.098" (2.50mm) |
| Mating Orientation | 45° (135°) Angle with Board |
| Current | 8 A |
| Voltage | 150 V |
| Wire Gauge | 18-28 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Features | Lever Actuated |
| Color | Gray |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
| Base Product Number | AST041 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AST0411004 | AST0411204 | AST0411804 | AST0250204 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLOCK 10POS 45DEG 2.5MM PCB | TERM BLOCK 12POS 45DEG 2.5MM PCB | TERM BLOCK 18POS 45DEG 2.5MM PCB | TERM BLK 2POS SIDE ENTRY 5MM PCB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
AST0410204
METZ CONNECT USA Inc.
AST0410304
METZ CONNECT USA Inc.
AST0410404
METZ CONNECT USA Inc.

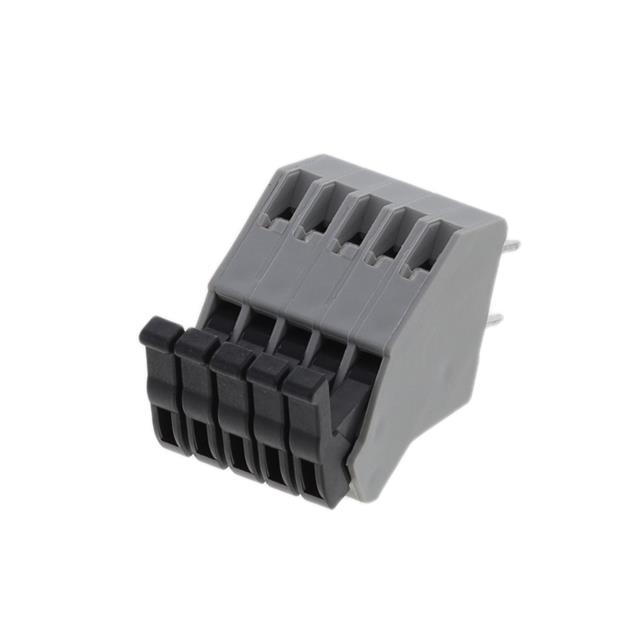

AST0410504
