Product CatalogPart Number
AST0550602
Manufacturer
METZ CONNECT USA Inc.Description
TERM BLK 6POS SIDE ENTRY 5MM PCB
Datasheet
DatasheetPackage
-
In Stock
15,907 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AST0550602
AST0550602
lmages are for reference only.Payment Methods
Delivery Services
6 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Quick Inquiry
AST0550602
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Number of Levels | 1 |
| Positions Per Level | 6 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board |
| Current | 12 A |
| Voltage | 300 V |
| Wire Gauge | 12-28 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Features | Lever Actuated |
| Color | Black |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
| Base Product Number | AST055 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AST0550202 | AST0550302 | AST0550402 | AST0550502 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLK 2POS SIDE ENTRY 5MM PCB | TERM BLK 3POS SIDE ENTRY 5MM PCB | TERM BLK 4POS SIDE ENTRY 5MM PCB | TERM BLK 5POS SIDE ENTRY 5MM PCB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
AST0550202
METZ CONNECT USA Inc.

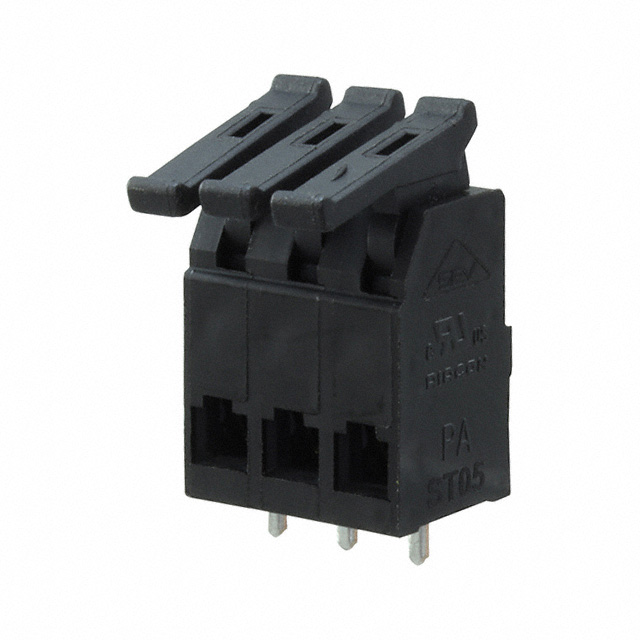

AST0550302
METZ CONNECT USA Inc.
AST0550402
METZ CONNECT USA Inc.
AST0550502
METZ CONNECT USA Inc.
AST0550702
METZ CONNECT USA Inc.
AST0550802
METZ CONNECT USA Inc.
AST0550902
METZ CONNECT USA Inc.
AST0551002
METZ CONNECT USA Inc.
AST0551102
METZ CONNECT USA Inc.
AST0551202
METZ CONNECT USA Inc.
AST0551602
METZ CONNECT USA Inc.
AST0552202
METZ CONNECT USA Inc.
AST0552402
METZ CONNECT USA Inc.

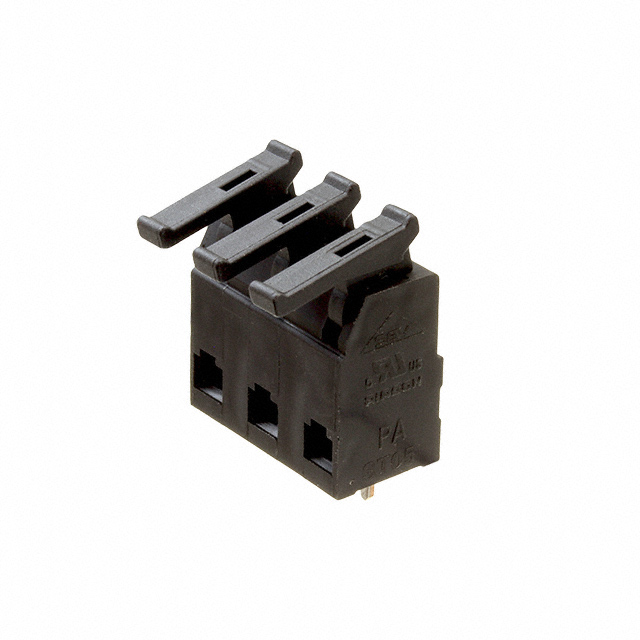

AST0570302
