AST0923ME-03Q
lmages are for reference only.AST0923ME-03Q
BUZZER MAGNETIC 3V 0.34X0.34 SMD
Datasheet-
77,343 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buzzers Transducer, Externally Driven Magnetic 3 V 80mA 2.3kHz 83dB @ 3V, 10cm Surface Mount Solder Pads
AST0923ME-03Q
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | Mallory Sonalert Products Inc. |
| Series | AS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 3V, 10cm |
| Current - Supply | 80mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

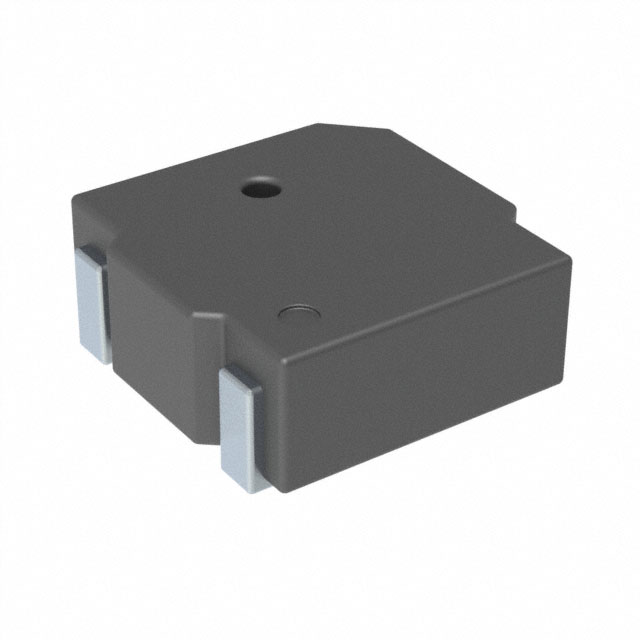

| Part Number | AST0440MFD-03Q | AST0440MFD-03TRQ | AST0540MW-03Q | AST0540MW-03TRQ |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BUZZER MAGN 3V 4X4MM W TH | BUZZER MAGN 3V 4X4MM W SMD | BUZZER MAGN 3V 5MMX5MMSMD | BUZZER MAGN 3V 5MMX5MMSMD |
| Series | AST | AST | AST | AST |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Strip | Tape & Reel (TR)-->Cut Tape (CT)--> |
