Product CatalogPart Number
AST3TDA-0000-T5
Manufacturer
Abracon LLCDescription
XTAL OSC TCXO 38.4MHZ SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
31,506 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AST3TDA-0000-T5
AST3TDA-0000-T5
lmages are for reference only.Payment Methods
Delivery Services
38.4 MHz VCTCXO HCMOS Oscillator 3.3V Amplitude Control 4-SMD, No Lead
Quick Inquiry
AST3TDA-0000-T5
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AST3TDA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 38.4 MHz |
| Function | Amplitude Control |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | ±5ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 15mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | AST3TDA53TACJ2-19.2000MHZ | AST3TDA53TACJ2-19.2000MHZT2 | AST3TDA53TACJ2-19.2000MHZT5 | AST3TDA53TACJ2-20.0000MHZ |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC TCXO 19.2 MHZ HCMOS SMD | 5MM X 3.2MM XTAL OSC TCXO 19.2 M | 5MM X 3.2MM XTAL OSC TCXO 19.2 M | XTAL OSC TCXO 20 MHZ HCMOS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
AST3TDA53TACJ2-19.2000MHZ
Abracon LLC
AST3TDA53TACJ2-19.2000MHZT2
Abracon LLC
AST3TDA53TACJ2-19.2000MHZT5
Abracon LLC

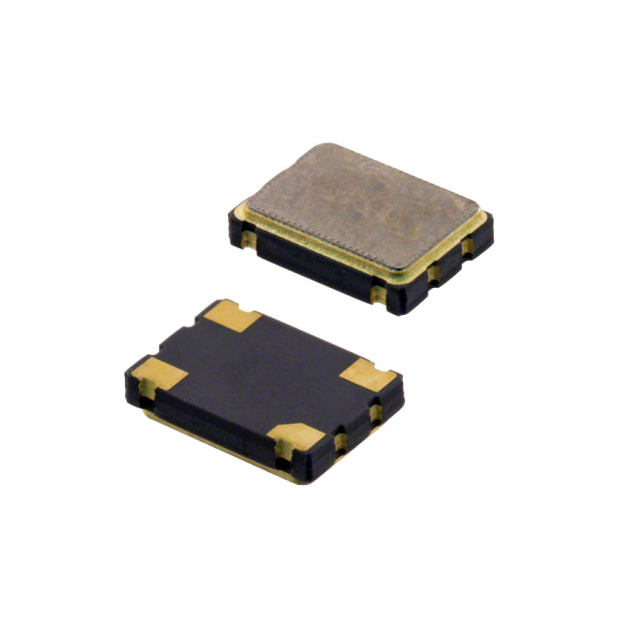

AST3TDA53TACJ2-20.0000MHZ
