ASVMPLP-123.520MHZ-EC-T
lmages are for reference only.ASVMPLP-123.520MHZ-EC-T
MEMS OSC XO 123.5200MHZ LVPECL
Datasheet6-SMD, No Lead Exposed Pad
30,497 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
123.52 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead Exposed Pad
ASVMPLP-123.520MHZ-EC-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASVMP, Pure Silicon™ |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 123.52 MHz |
| Function | Enable/Disable |
| Output | LVPECL |
| Voltage - Supply | 2.25V ~ 3.6V |
| Frequency Stability | - |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 58mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

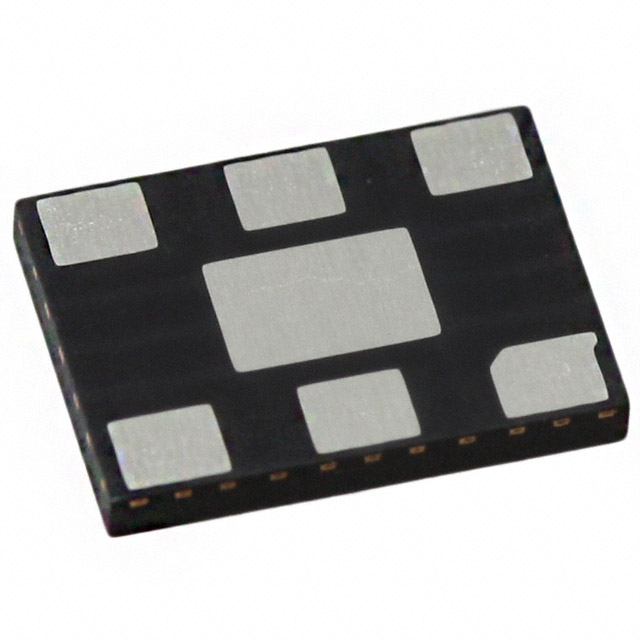

| Part Number | ASVMPLP-125.000MHZ-LR-T | ASVMPLP-133.330MHZ-LC-T | ASVMPLP-150.000MHZ-LR-T | ASVMPLP-155.520MHZ-LC-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 125.0000MHZ LVPECL | MEMS OSC XO 133.3300MHZ LVPECL | MEMS OSC XO 150.0000MHZ LVPECL | MEMS OSC XO 155.5200MHZ LVPECL |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
