ASVTX-13-C-40.000MHZ-I15-T

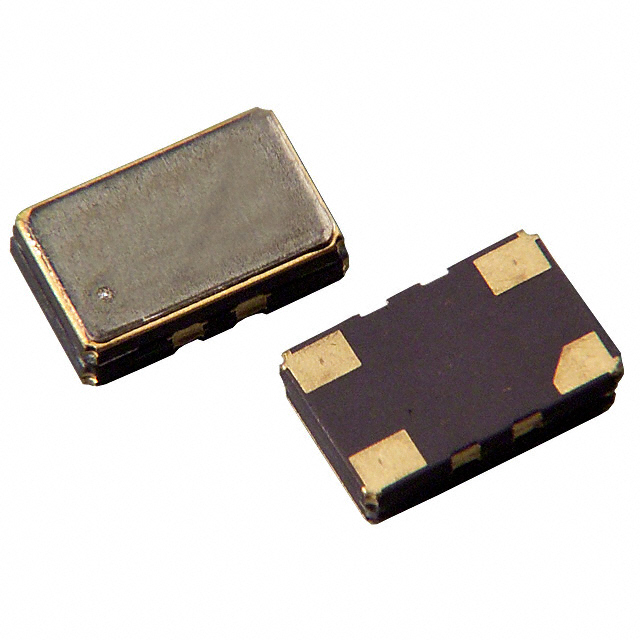

lmages are for reference only.ASVTX-13-C-40.000MHZ-I15-T
XTAL OSC VCTCXO 40.0000MHZ SNWV
Datasheet4-SMD, No Lead
43,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 MHz VCTCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
ASVTX-13-C-40.000MHZ-I15-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASVTX-13 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 40 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±1.5ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ASVTX-13-C-40.000MHZ-I05-T | ASVTX-13-C-16.369MHZ-I05-T | ASVTX-13-C-19.200MHZ-I05-T | ASVTX-13-C-26.000MHZ-I05-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 40.0000MHZ SNWV | XTAL OSC VCTCXO 16.3690MHZ SNWV | XTAL OSC VCTCXO 19.2000MHZ SNWV | XTAL OSC VCTCXO 26.0000MHZ SNWV |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
