AT13-1612PB-BM01
Manufacturer
Amphenol Sine Systems CorpDescription
13 POSITION PCB RECEPTACLE WITH
Datasheet
DatasheetPackage
-
In Stock
95,373 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AT13-1612PB-BM01
AT13-1612PB-BM01
lmages are for reference only.Payment Methods
Delivery Services

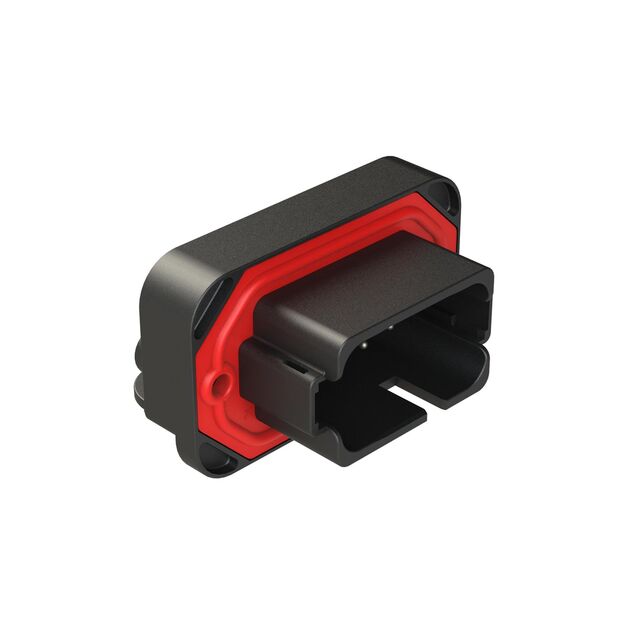

Connector Header Panel Mount, Through Hole, Right Angle 13 position 0.185" (4.70mm)
Quick Inquiry
AT13-1612PB-BM01
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol Sine Systems Corp |
| Series | BoardLock™ AT |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.185" (4.70mm) |
| Number of Positions | 13 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.191" (4.85mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 1.390" (35.30mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 25A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | AT13 |
