ATCA-01-600M-V

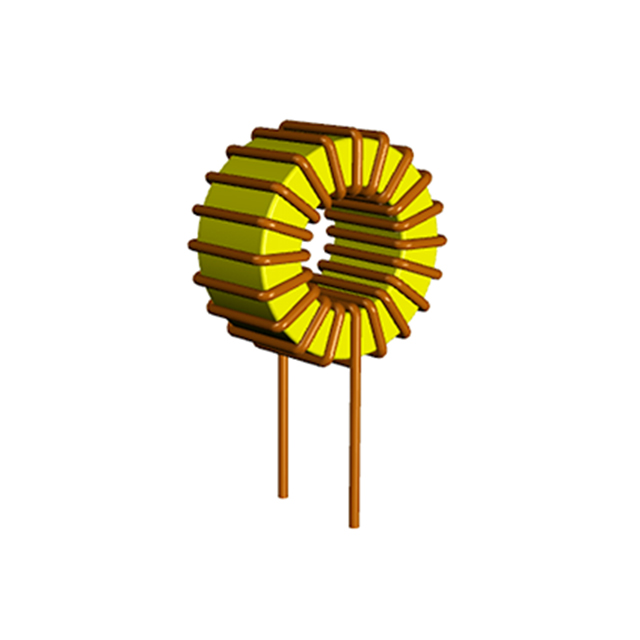

lmages are for reference only.ATCA-01-600M-V
FIXED IND 60UH 3A 38 MOHM TH
DatasheetRadial, Vertical (Open)
68,769 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60 µH Unshielded Toroidal Inductor 3 A 38mOhm Max Radial, Vertical (Open)
ATCA-01-600M-V
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATCA |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 60 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 38mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.709" L x 0.453" W (18.00mm x 11.50mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | ATCA-01-600M-H | ATCA-01-600M-H | ATCA-01-600M-V | ATCA-01-101M-H |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 60UH 3A 38 MOHM TH | FIXED IND 60UH 3A 38 MOHM TH | FIXED IND 60UH 3A 38 MOHM TH | FIXED IND 100UH 2A 81 MOHM TH |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tray | Tray | Tray | Tray |
