ATFC-0201-2N3B-T

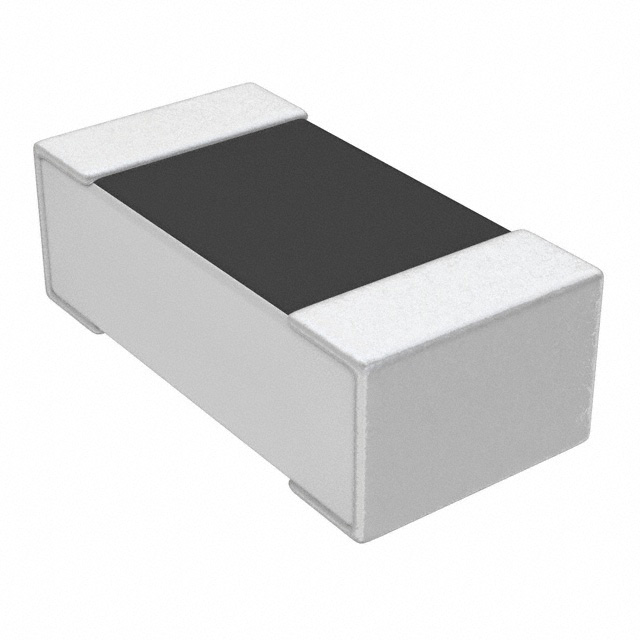

lmages are for reference only.ATFC-0201-2N3B-T
FIXED IND 2.3NH 150MA 800MOHM SM
Datasheet0201 (0603 Metric)
76,667 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.3 nH Unshielded Thin Film Inductor 150 mA 800mOhm Max 0201 (0603 Metric)
ATFC-0201-2N3B-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATFC-0201 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 2.3 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 800mOhm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | ATFC-0201-2N3B-T | ATFC-0201-10NG-T | ATFC-0201-1N0B-T | ATFC-0201-1N1B-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.3NH 150MA 800MOHM SM | FIXED IND 10NH 80MA 3.5 OHM SMD | FIXED IND 1NH 300MA 300 MOHM SMD | FIXED IND 1.1NH 300MA 350MOHM SM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
