ATH06T033-9SJL
lmages are for reference only.ATH06T033-9SJL
DC DC CONVERTER 0.8-2.5V 33W
Datasheet6-SMD Module
86,248 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 6A 3V - 3.6V Input
ATH06T033-9SJL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | ATH06 (33W) |
| Packaging | Tray |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output 1 | 0.8 ~ 2.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 33 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

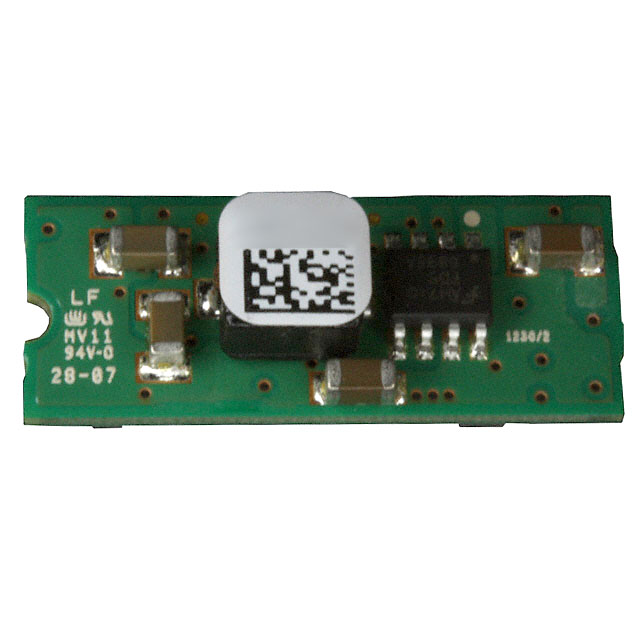

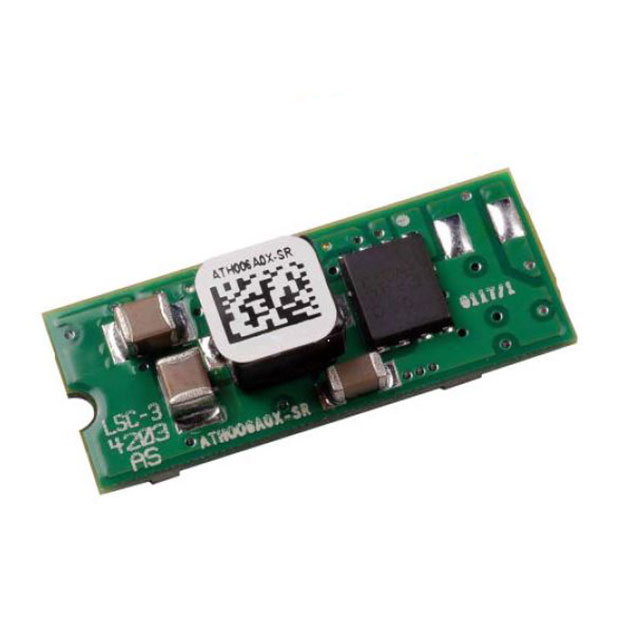

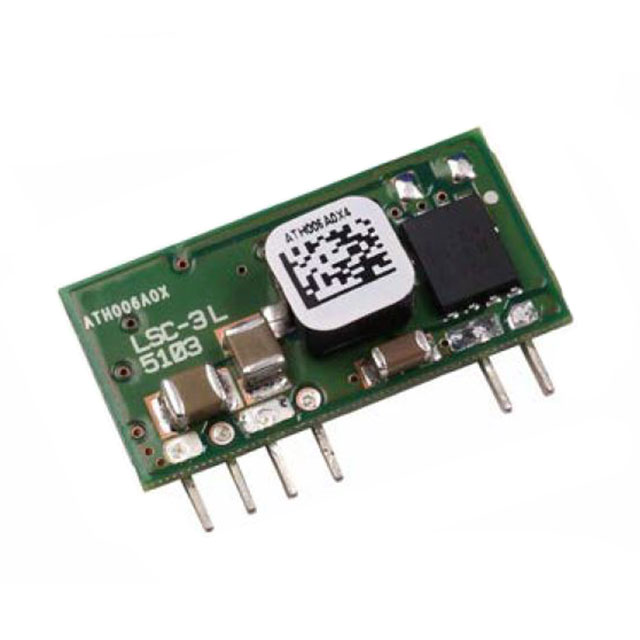

| Part Number | ATH06T033-9SJ | ATH006A0X | ATH006A0X-SR | ATH006A0X-SRZ |
| Manufacturer | ARTESYN / Advanced Energy | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ||
| Description | DC DC CONVERTER 0.8-2.5V 33W | DC DC CONVERTER 0.8-3.6V 21W | DC DC CONVERTER 0.8-3.6V 21W | DC DC CONVERTER 0.8-3.6V 21W |
| Series | ARTESYN / Advanced Energy | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
