ATQ5
lmages are for reference only.ATQ5
500V 5A TD MIDGET FUSE
Datasheet5AG, 10mm x 38.1mm
57,175 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5A 500 VAC Fuse Cartridge Requires Holder
ATQ5
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | ATQ |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 5A |
| Voltage Rating - AC | 500 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | 5AG, 10mm x 38.1mm |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

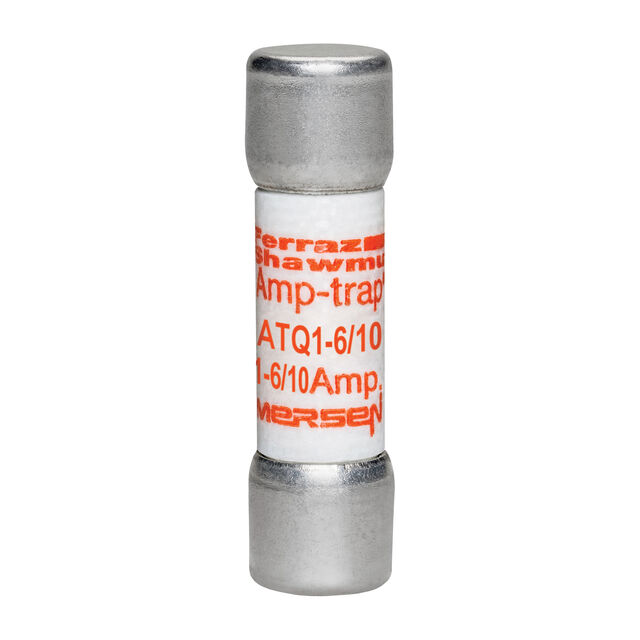

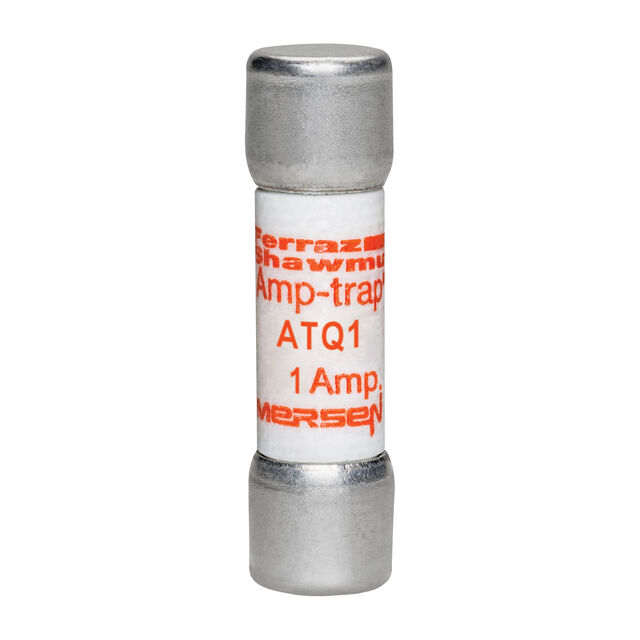

| Part Number | ATQ1 | ATQ1-1/2 | ATQ1-1/4 | ATQ1-6/10 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | 500V 1A TD MIDGET FUSE | 500V 1-1/2A TD MIDGET FUSE | FUSE,MIDGET,TIME DELAY,PC MOUNT, | 500V 1-6/10A TD MIDGET FUSE |
| Series | ATQ | ATQ | ATQ | ATQ |
| Packaging | Box | Box | Box | Box |
