Product CatalogPart Number
ATS025A0X3-PZ
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 0.8-5.5V 137W
Datasheet
DatasheetPackage
13-SIP Module
In Stock
39,992 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ATS025A0X3-PZ
ATS025A0X3-PZ
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 25A 6V - 14V Input
Quick Inquiry
ATS025A0X3-PZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Austin MegaLynx™ |
| Packaging | Bulk |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.8 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 137 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 13-SIP Module |
| Size / Dimension | 2.00" L x 0.55" W x 0.50" H (50.8mm x 14.0mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

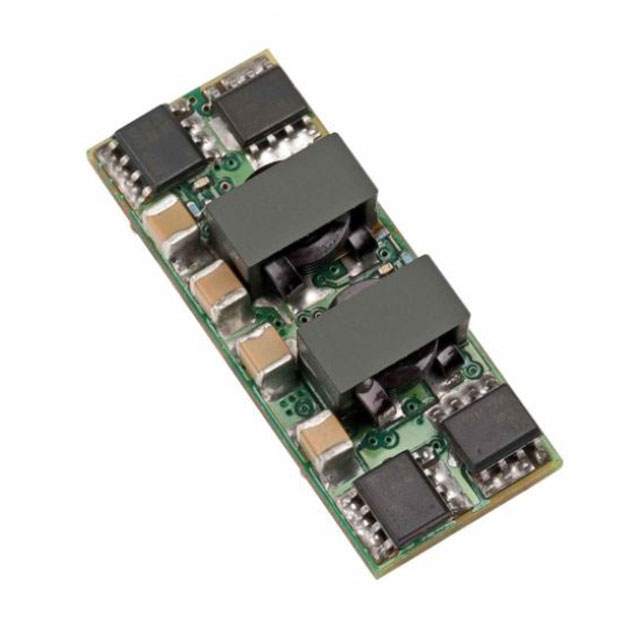

| Part Number | ATS020A0X3-SRHZ | ATS020A0X3-SRZ | ATS030A0X3-42SRPHZ | ATS030A0X3-61SRPHZ |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | |||
| Description | DC DC CONVERTER 0.8-3.63V 73W | DC DC CONVERTER 0.8-3.63V | DC DC CONVERTER | DC DC CONVERTER |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
