ATS17501PSGATN-SDFUYK-A
lmages are for reference only.ATS17501PSGATN-SDFUYK-A
EMOTOR DUAL OUTPUT DIFFERENTIAL
Datasheet4-SSIP
87,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor External Magnet, Not Included PC Pin
ATS17501PSGATN-SDFUYK-A
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | - |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance | 100 Ohms |
| Resistance Tolerance | - |
| Voltage - Supply | 4V ~ 24V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 160°C |
| Package / Case | 4-SSIP |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

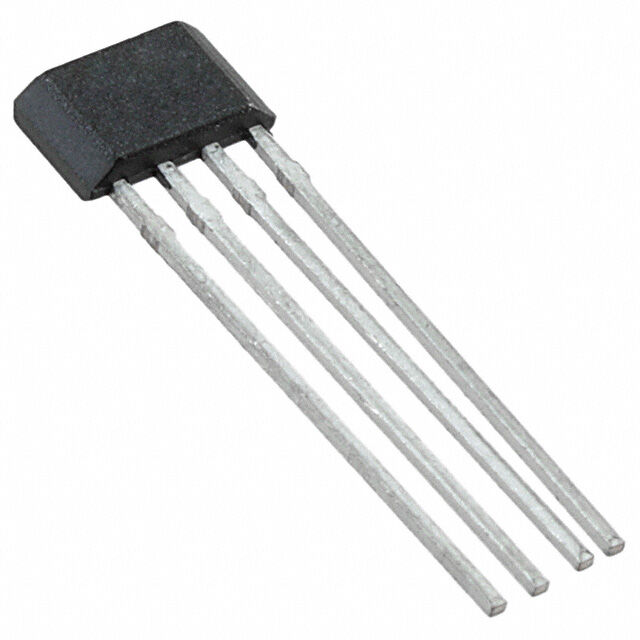

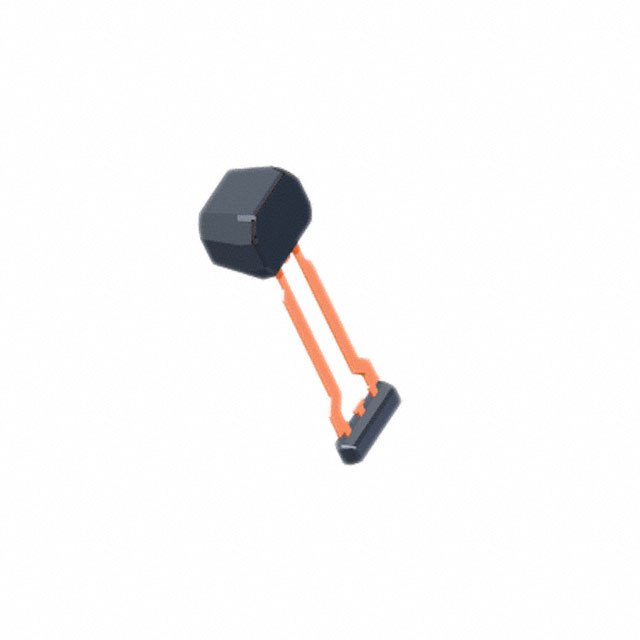

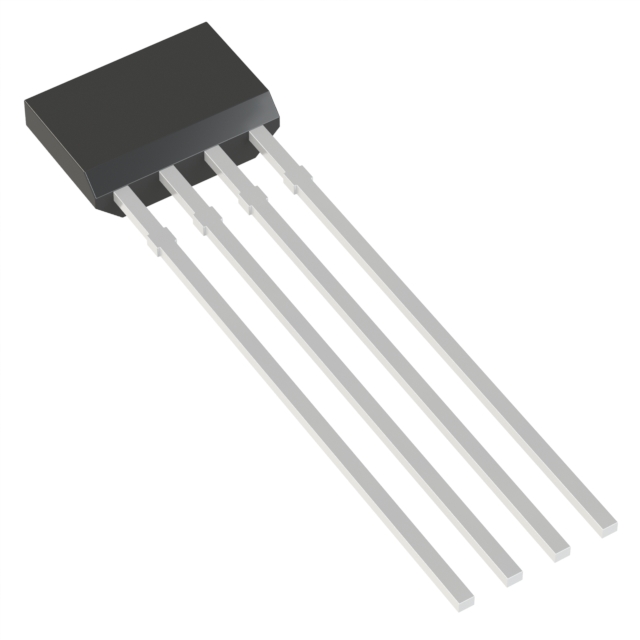

| Part Number | ATS17501PSGATN-SDFUYJ | ATS17501PSGATN-VDFUYJ | ATS17501PSGATN-WDFUYJ | ATS699LSN-FSWPH-T |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMOTOR DUAL OUTPUT DIFFERENTIAL | EMOTOR DUAL OUTPUT DIFFERENTIAL | EMOTOR DUAL OUTPUT DIFFERENTIAL | SENSOR ROTARY SOLDER PAD |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
