AUIRL7736M2TR
lmages are for reference only.AUIRL7736M2TR
MOSFET N-CH 40V 179A DIRECTFET
DatasheetDirectFET™ Isometric M4
62,865 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 179A (Tc) 2.5W (Ta), 63W (Tc) Surface Mount DirectFET™ Isometric M4
AUIRL7736M2TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 179A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 67A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 150µA |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 5055 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric M4 |
| Package / Case | DirectFET™ Isometric M4 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 78 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|

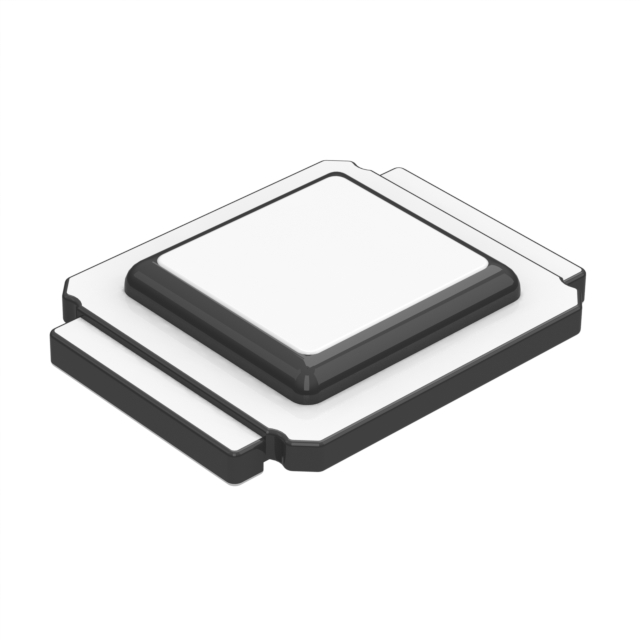

| Part Number | AUIRL7736M2TR | AUIRL7732S2TR | AUIRL7766M2TR | AUIRL7766M2TR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | International Rectifier |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 40V 179A DIRECTFET | MOSFET N-CH 40V 14A DIRECTFET SC | MOSFET N-CH 100V 10A DIRECTFET | MOSFET N-CH 100V 10A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
