AVD200-48S12TL

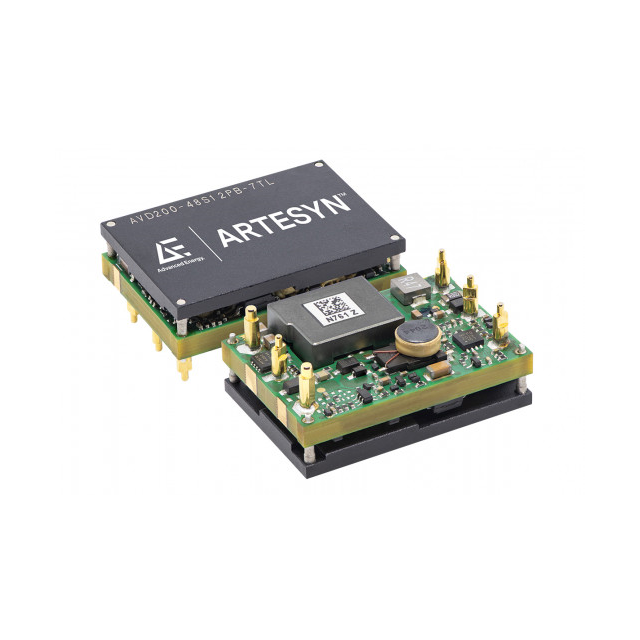

lmages are for reference only.AVD200-48S12TL
12V 200W SIXTEENTH BRICK
DatasheetSixteenth Brick
30,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 17A 36V - 75V Input
AVD200-48S12TL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AVD200-48S12 (200W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 17A |
| Power (Watts) | 204 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93.9% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.1mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | CE, CSA, TUV, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | AVD200-48S12-6L | AVD200-48S12-6L | AVD200-48S12B-6L | AVD200-48S12B-7TL |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ||||
| Description | 12V 200W SIXTEENTH BRICK | 12V 200W SIXTEENTH BRICK | 12V 200W SIXTEENTH BRICK | 12V 200W SIXTEENTH BRICK |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
