AVD50B-48S05TL
lmages are for reference only.AVD50B-48S05TL
DC DC CONVERTER 5V 50W
DatasheetSixteenth Brick
37,189 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 10A 36V - 75V Input
AVD50B-48S05TL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AVD50B (50W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AVD50 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
 |
 |

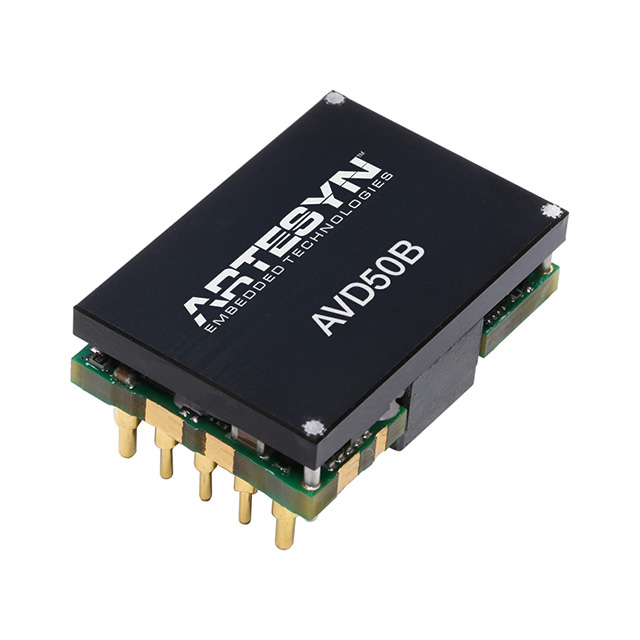

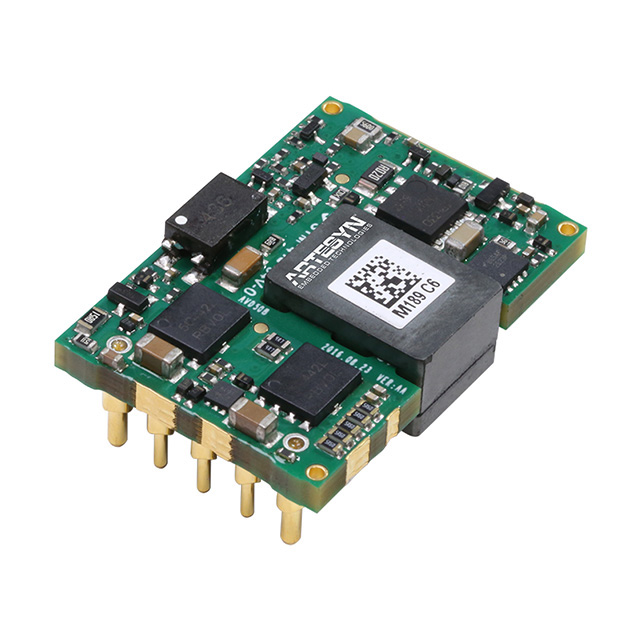

| Part Number | AVD50B-48S05-6L | AVD50B-48S05-6L | AVD50B-48S05B-6L | AVD50B-48S12-6L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 12V 50W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
