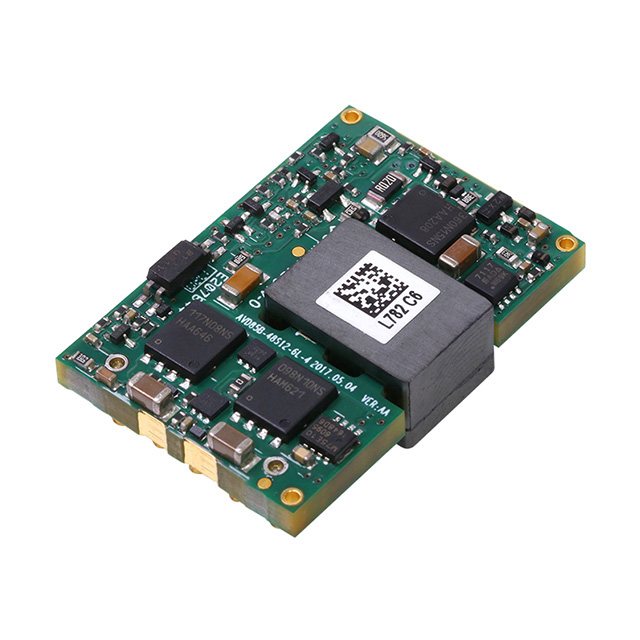

AVD85-48S12TL
lmages are for reference only.AVD85-48S12TL
DC DC CONVERTER 12V 85W
Datasheet8-DIP Module, 1/16 Brick
51,058 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 7A 36V - 75V Input
AVD85-48S12TL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AVD85 (85W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 85 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | - |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.34" H (33.0mm x 22.9mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AVD85 |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
 |

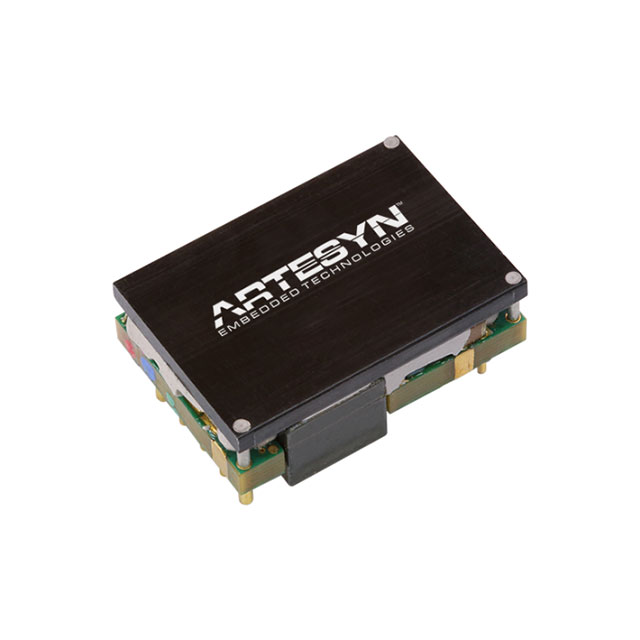

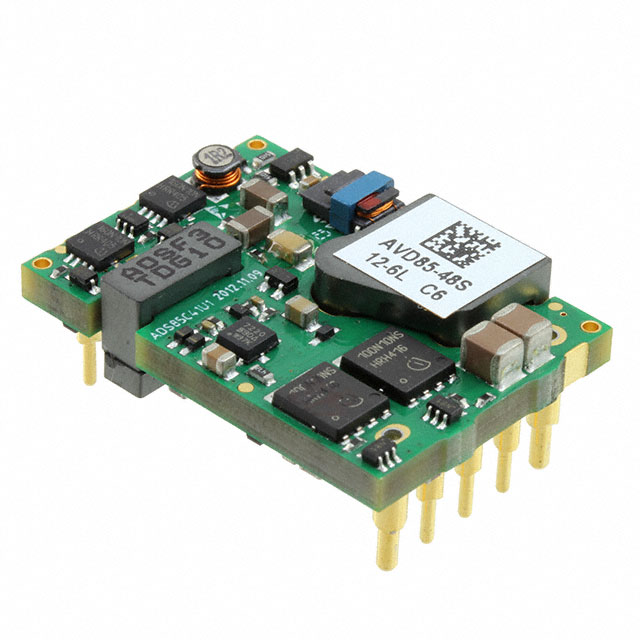

| Part Number | AVD85-48S12-6L | AVD85-48S12B-6L | AVD85-48S05-6L | AVD85-48S05B-6L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | DC DC CONVERTER 12V 85W | DC DC CONVERTER 12V 85W | DC DC CONVERTER 5V 85W | DC DC CONVERTER 5V 85W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Bulk | Bulk |
