AVE450B-48S28-6L/M
lmages are for reference only.AVE450B-48S28-6L/M
DC DC CONVERTER 28V 450W
Datasheet9-DIP Module, 1/2 Brick
24,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
AVE450B-48S28-6L/M
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AVE450 (450W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16A |
| Power (Watts) | 450 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AVE450 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
 |
 |

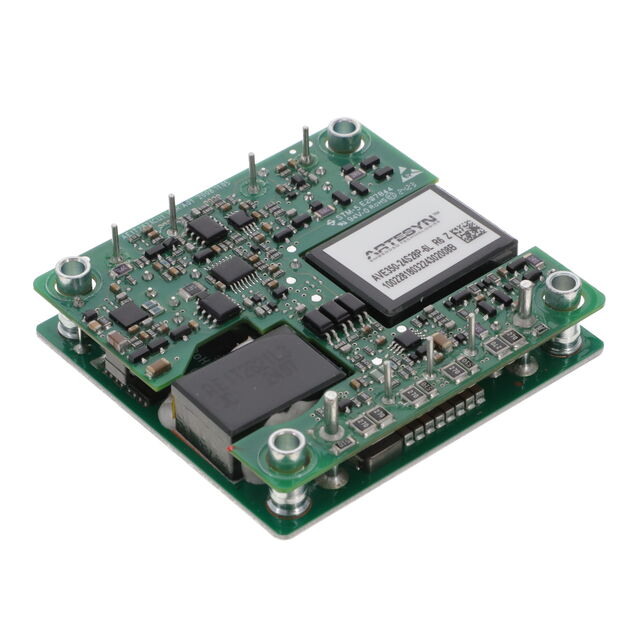

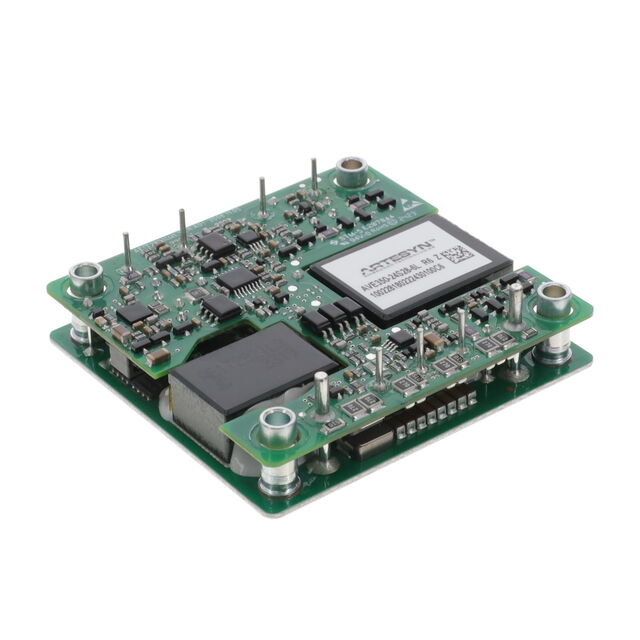

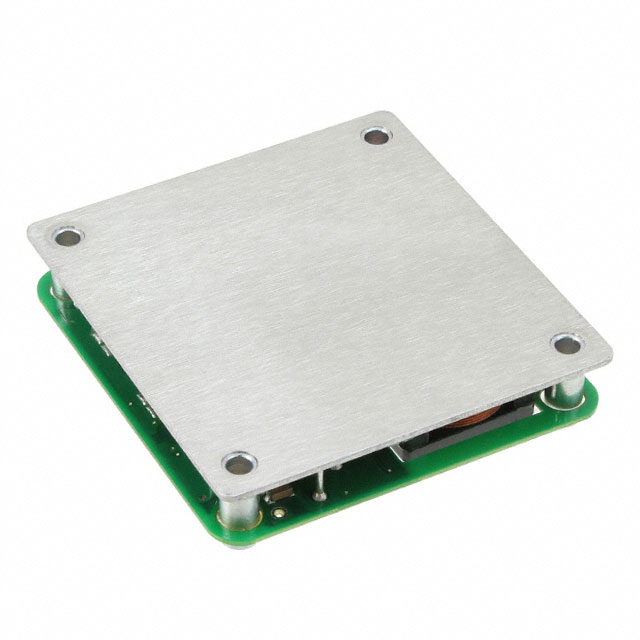

| Part Number | AVE300-48S1V2-4 | AVE350-24S28-6L | AVE350-24S28P-6L | AVE350B-48S28-6 |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 1.2V 300W | DC DC CONVERTER 28V 350W | DC DC CONVERTER 28V 350W | DC DC CONVERTER 28V 350W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
