Product CatalogPart Number
AW 110/32-T
Manufacturer
Assmann WSW ComponentsDescription
PIN HEADER, 4.7/3MM, 2.54MM
Datasheet
DatasheetPackage
-
In Stock
44,874 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AW 110/32-T
AW 110/32-T

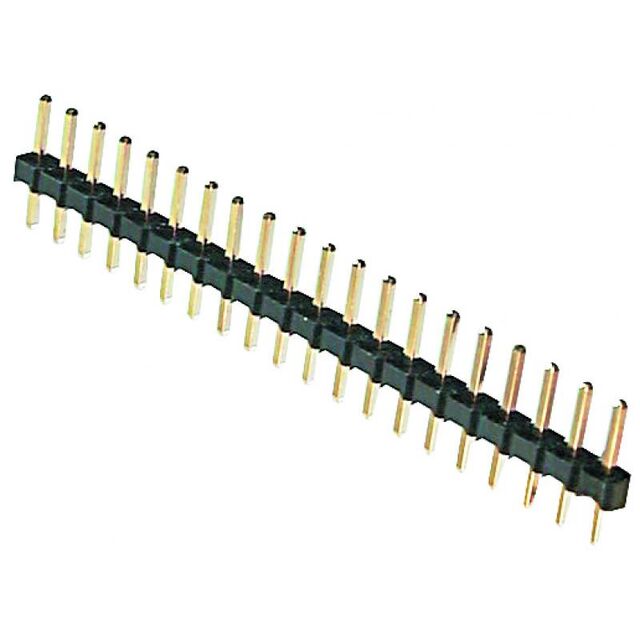

lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 32 position 0.100" (2.54mm)
Quick Inquiry
AW 110/32-T
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Assmann WSW Components |
| Series | AW |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 32 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.185" (4.70mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.362" (9.20mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | AW 110 |
