AWB7227RM52P8

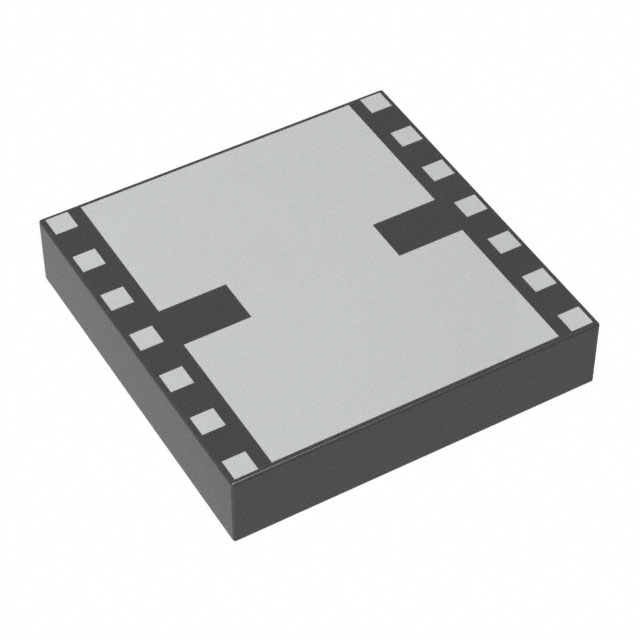

lmages are for reference only.AWB7227RM52P8
IC AMP HSDPA 2.11-2.17GHZ 14SMD
Datasheet14-SMD Module
71,078 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC HSDPA, LTE, WCDMA 2.11GHz ~ 2.17GHz 14-SMD Module
AWB7227RM52P8
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.11GHz ~ 2.17GHz |
| P1dB | 34.5dBm |
| Gain | 30.5dB |
| Noise Figure | - |
| RF Type | HSDPA, LTE, WCDMA |
| Voltage - Supply | 4.5V |
| Current - Supply | 740mA |
| Test Frequency | 2.17GHz |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module |
| Supplier Device Package | 14-SMD Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

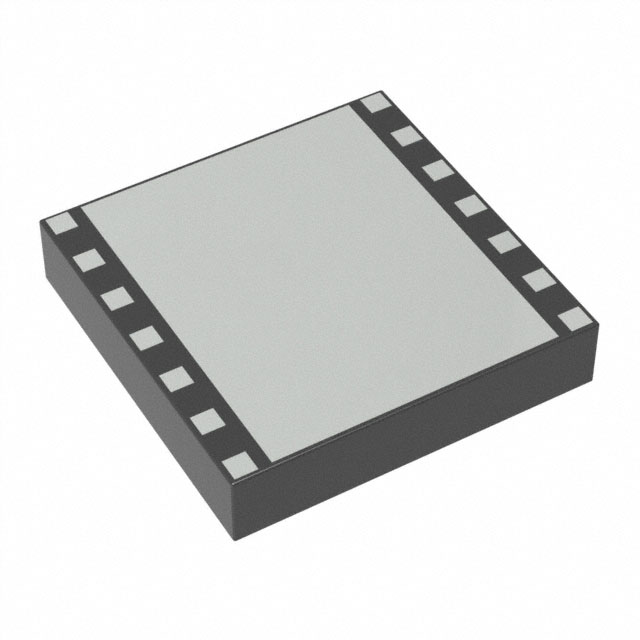

| Part Number | AWB7227SP8 | AWB7122P8 | AWB7123HM41P8 | AWB7124P8 |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF AMP 2.11-2.17 GHZ MODULE | IC AMP HSDPA 1.805-1.88GHZ 14SMD | IC AMP HSDPA 1.93-1.99GHZ 14SMD | IC AMP HSDPA 728MHZ-768MHZ 14SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
