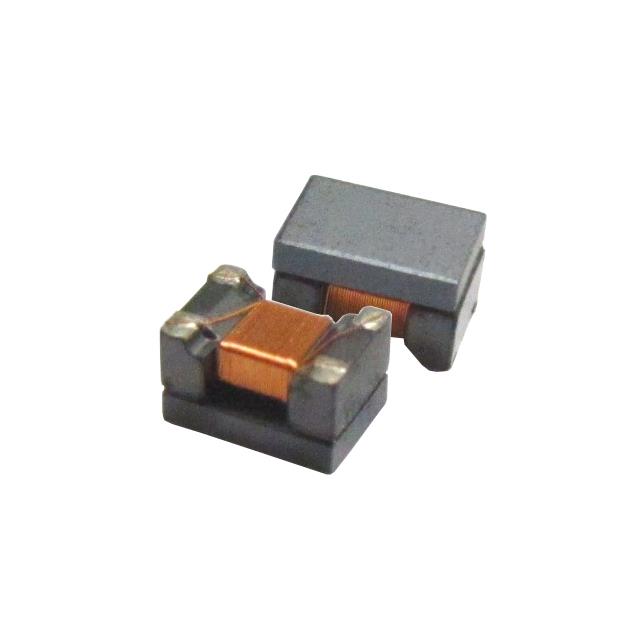

2 Line Common Mode Choke Surface Mount 220 Ohms @ 100 MHz 320mA DCR 400mOhm
AWCU00321619221M02
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Pulse Electronics |
| Series | AWCU |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 320mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -50°C ~ 150°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.083" (2.10mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 220 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AWCU00321619102M02 | AWCU00321619121M02 | AWCU00321619161M02 | AWCU00321619222M02 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 230MA 2LN 1KOHM SMD AEC-Q200 | CMC 370MA 2LN 120OHM SMD AECQ200 | CMC 340MA 2LN 160OHM SMD AECQ200 | CMC 200MA 2LN 2.2KOHM SMD |
| Series | AWCU | AWCU | AWCU | AWCU |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
