Product CatalogPart Number
AX02-303R9
Manufacturer
Triad MagneticsDescription
FIXED IND 3.9UH 10A 6.8 MOHM SMD
Datasheet
DatasheetPackage
2-SMD, J-Lead
In Stock
59,544 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX02-303R9
AX02-303R9
lmages are for reference only.Payment Methods
Delivery Services

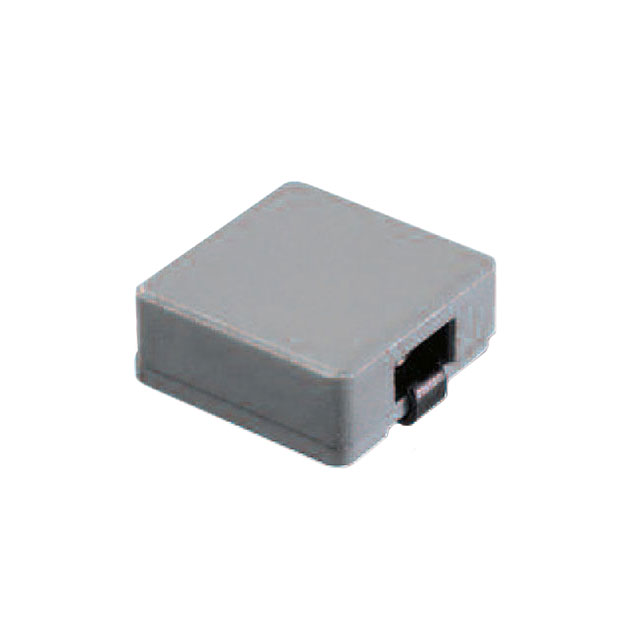

3.9 µH Shielded Drum Core, Wirewound Inductor 10 A 6.8mOhm Max 2-SMD, J-Lead
Quick Inquiry
AX02-303R9
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | AX02 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.9 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 0.524" L x 0.591" W (13.30mm x 15.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | AX02-300R6 | AX02-301R0 | AX02-301R5 | AX02-301R5 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 600NH 27A 0.95MOHM SMD | FIXED IND 1UH 23A 1.7 MOHM SMD | FIXED IND 1.5UH 18A 2.3 MOHM SMD | FIXED IND 1.5UH 18A 2.3 MOHM SMD |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Box | Box | Box | Box |
