Product CatalogPart Number
AX3DAD1-212.5000T
Manufacturer
Abracon LLCDescription
CLEARCLOCK ULTRA-LOW JITTER
Datasheet
DatasheetPackage
6-SMD, No Lead
In Stock
72,393 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX3DAD1-212.5000T
AX3DAD1-212.5000T
lmages are for reference only.Payment Methods
Delivery Services
212.5 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Quick Inquiry
AX3DAD1-212.5000T
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 212.5 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±15ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 27mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

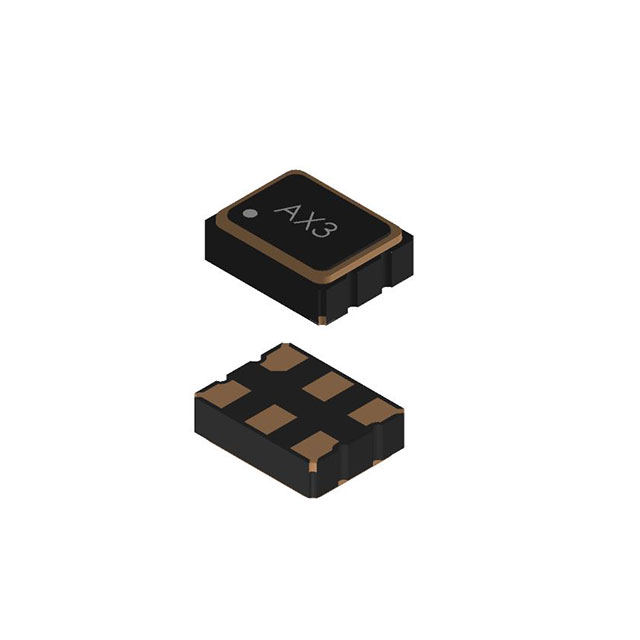

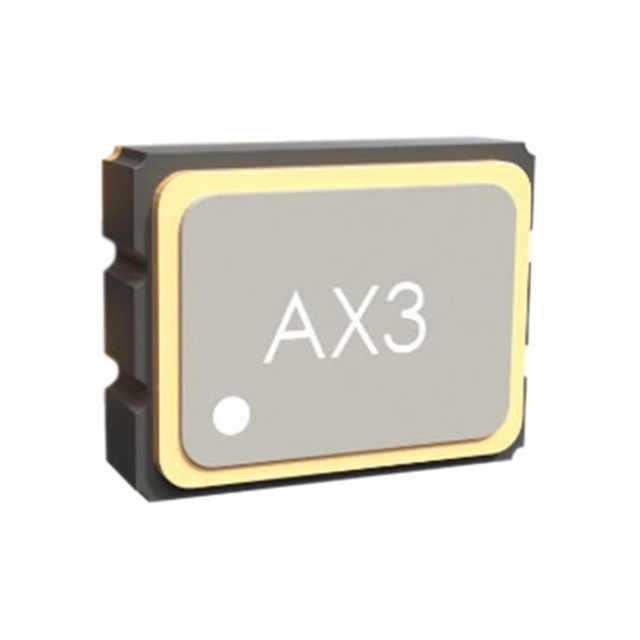

| Part Number | AX3-0005-T | AX3-0006-T | AX3DAF1-100.0000 | AX3DAF1-100.0000T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 100MHZ 1.8V HCSL | XTAL OSC XO 100MHZ HCSL SMD | XTAL OSC XO 100MHZ 3.3V LVDS | XTAL OSC XO 100MHZ 3.3V LVDS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
