Product CatalogPart Number
AX5DCF1-456.9600C
Manufacturer
Abracon LLCDescription
OSC XO 456.96MHZ 1.8V LVDS
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
66,209 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX5DCF1-456.9600C
AX5DCF1-456.9600C

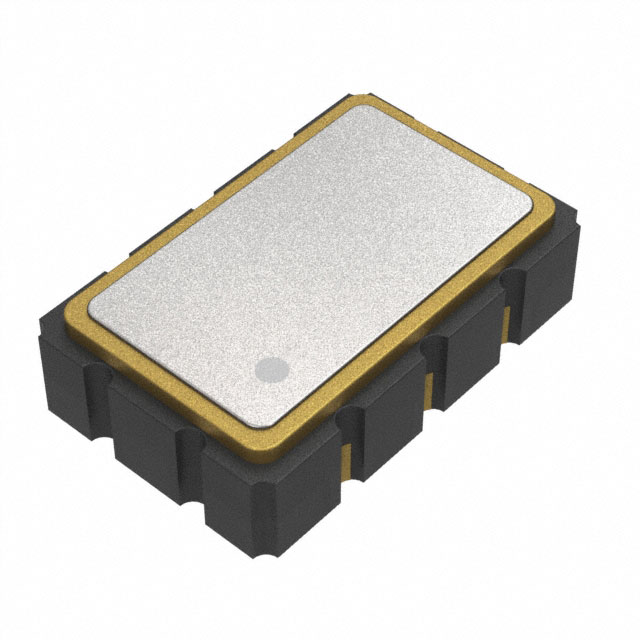

lmages are for reference only.Payment Methods
Delivery Services
456.96 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 8-SMD, No Lead
Quick Inquiry
AX5DCF1-456.9600C
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX5 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 456.96 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 80mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | AX5DCF1-100.0000C | AX5DCF1-100.0000T | AX5DCF1-1000.0000C | AX5DCF1-1024.0000C |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OSC XO 100MHZ 1.8V LVDS | OSC XO 100MHZ 1.8V LVDS | OSC XO 1GHZ 1.8V LVDS | OSC XO 1.024GHZ 1.8V LVDS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Tape & Reel (TR) | Strip | Strip |
