Product CatalogPart Number
AX5PAF1-672.1627C
Manufacturer
Abracon LLCDescription
OSC XO 672.162712MHZ 3.3V LVPECL
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
11,449 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX5PAF1-672.1627C
AX5PAF1-672.1627C
lmages are for reference only.Payment Methods
Delivery Services
672.162712 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 8-SMD, No Lead
Quick Inquiry
AX5PAF1-672.1627C
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX5 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 672.162712 MHz |
| Function | Enable/Disable |
| Output | LVPECL |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 110mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AX5PAF1-672.2500C | AX5PAF1-100.0000C | AX5PAF1-1000.0000C | AX5PAF1-1024.0000C |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OSC XO 672.25MHZ 3.3V LVPECL | OSC XO 100MHZ 3.3V LVPECL | OSC XO 1GHZ 3.3V LVPECL | OSC XO 1.024GHZ 3.3V LVPECL |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Strip | Strip | Strip |
Customers Also Interested in
Recommended Products

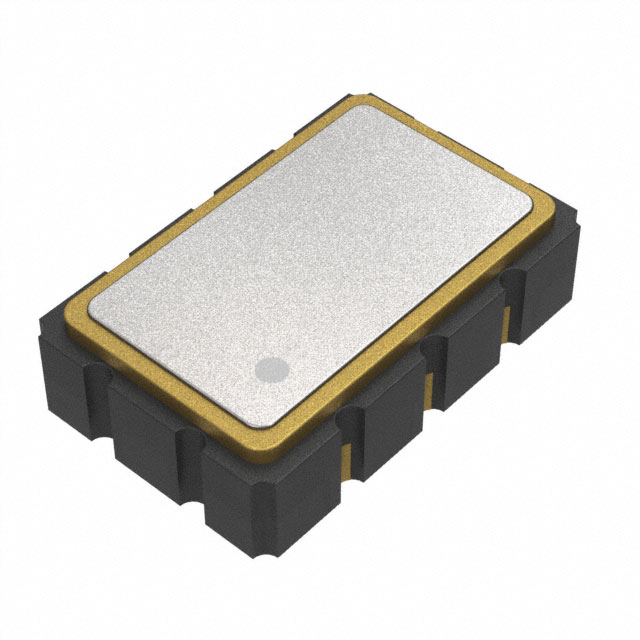

AX5PAF1-100.0000C
