Product CatalogPart Number
AX7DAF1-704.3806C
Manufacturer
Abracon LLCDescription
XTAL OSC XO 704.3806MHZ LVDS SMD
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
24,915 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX7DAF1-704.3806C
AX7DAF1-704.3806C

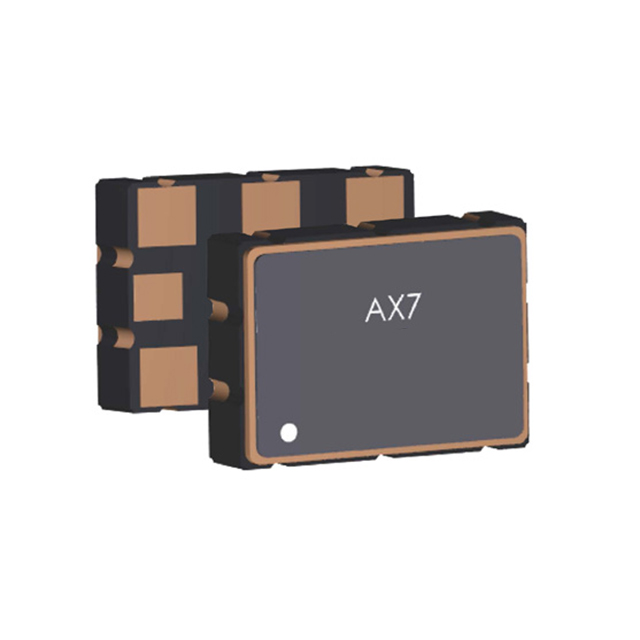

lmages are for reference only.Payment Methods
Delivery Services
704.3806 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 8-SMD, No Lead
Quick Inquiry
AX7DAF1-704.3806C
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX7 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 704.3806 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 70mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | AX7DAF1-704.3806 | AX7DAF1-704.3806T | AX7DAF1-100.0000 | AX7DAF1-100.0000C |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 704.3806MHZ LVDS SMD | XTAL OSC XO 704.3806MHZ LVDS SMD | XTAL OSC XO 100.0000MHZ LVDS SMD | XTAL OSC XO 100.0000MHZ LVDS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Strip |
