Product CatalogPart Number
AX7DBF1-804.0000C
Manufacturer
Abracon LLCDescription
XTAL OSC XO 804.0000MHZ LVDS SMD
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
99,281 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

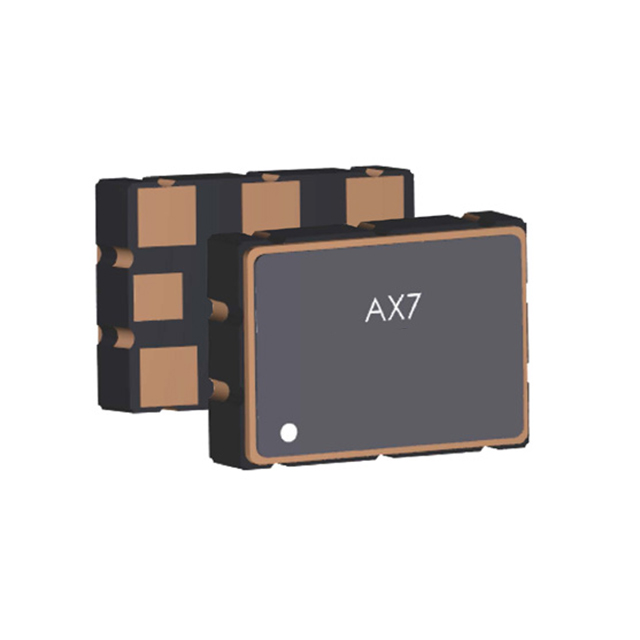

AX7DBF1-804.0000C
AX7DBF1-804.0000C
lmages are for reference only.Payment Methods
Delivery Services
804 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 8-SMD, No Lead
Quick Inquiry
AX7DBF1-804.0000C
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX7 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 804 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 2.5V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 70mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | AX7DBF1-804.3100C | AX7DBF1-804.3100C | AX7DBF1-804.7038C | AX7DBF1-100.0000 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 804.3100MHZ LVDS SMD | XTAL OSC XO 804.3100MHZ LVDS SMD | XTAL OSC XO 804.7038MHZ LVDS SMD | XTAL OSC XO 100.0000MHZ LVDS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Strip | Strip | Bulk |
