Product CatalogPart Number
AX7DCF2-153.6000C
Manufacturer
Abracon LLCDescription
XTAL OSC XO 153.6000MHZ LVDS SMD
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
90,364 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AX7DCF2-153.6000C
AX7DCF2-153.6000C

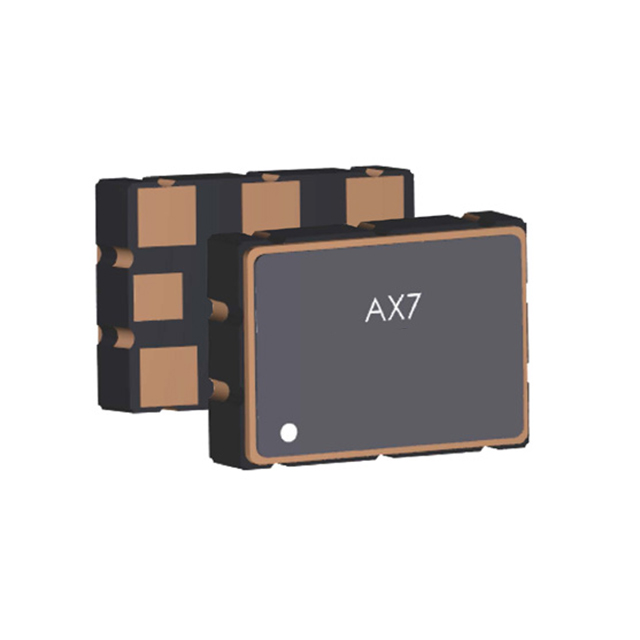

lmages are for reference only.Payment Methods
Delivery Services
153.6 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 8-SMD, No Lead
Quick Inquiry
AX7DCF2-153.6000C
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ClearClock™ AX7 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 153.6 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 70mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Base Product Number | - |
