AXA000BB36-LHS
lmages are for reference only.AXA000BB36-LHS
DC DC CONVERTER +/-12V 9.8W
Datasheet6-DIP Module
13,150 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 410mA, 410mA 18V - 75V Input
AXA000BB36-LHS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AXA (10W) |
| Packaging | Bulk |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 410mA, 410mA |
| Power (Watts) | 9.8 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.22" L x 1.00" W x 0.69" H (31.0mm x 25.4mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AXA000 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

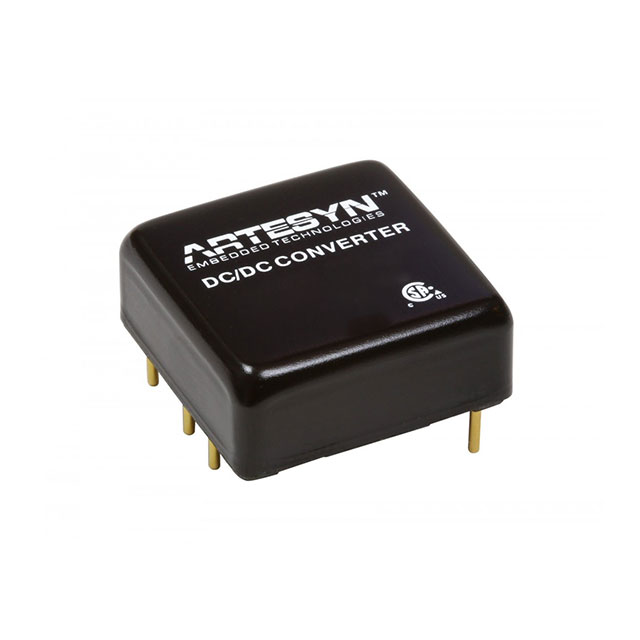

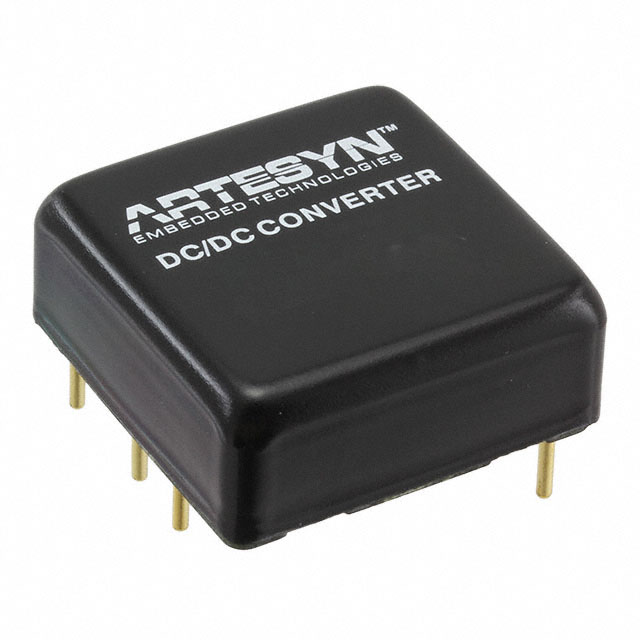

| Part Number | AXA000BB18-L | AXA000BB18-LHS | AXA000BB36-L | AXA000CC18-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER +/-12V 10W | DC DC CONVERTER +/-12V 9.8W | DC DC CONVERTER +/-12V 10W | DC DC CONVERTER +/-15V 10W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Bulk | Tube | Tube |
