AYA00A48-L

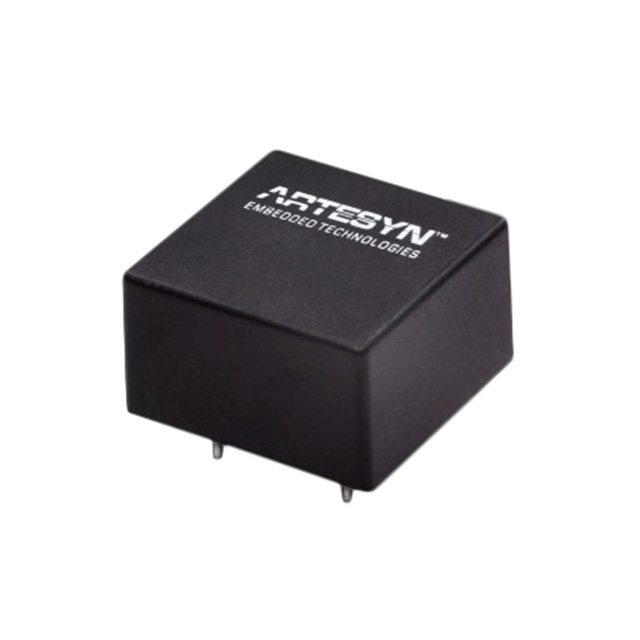

lmages are for reference only.AYA00A48-L
DC DC CONVERTER 5V 2W
Datasheet7-DIP Module, 4 Leads
13,056 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 400mA 36V - 75V Input
AYA00A48-L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AYA (2W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 4 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AYA00A |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | AYA00A05-L | AYA00A12-L | AYA00A24-L | AYA00AA05-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER +/-5V 2W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tube |
