Product CatalogPart Number
AYF335135A
Manufacturer
Panasonic Electric WorksDescription
CONN FPC 51POS 0.3MM R/A
Datasheet
DatasheetPackage
-
In Stock
99,034 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

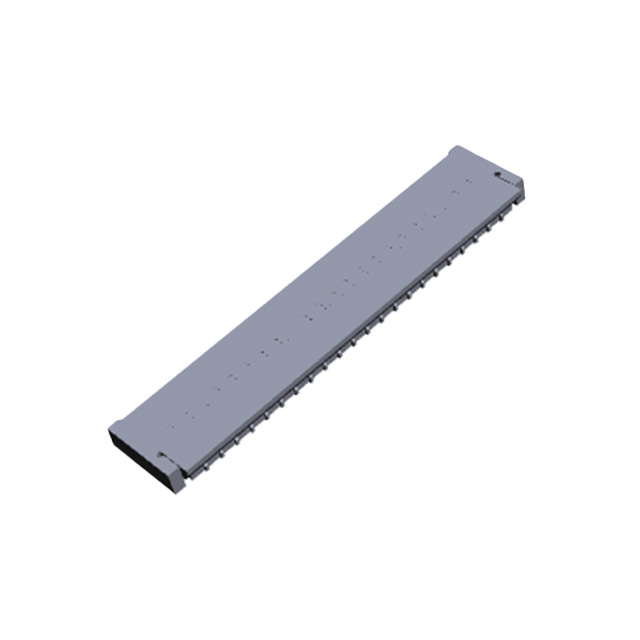

AYF335135A
AYF335135A
lmages are for reference only.Payment Methods
Delivery Services
51 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Quick Inquiry
AYF335135A
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Panasonic Electric Works |
| Series | Y3B |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 51 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.2A per Contact |
| Contact Finish Thickness | Flash |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | 20 |
| Base Product Number | AYF335135 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

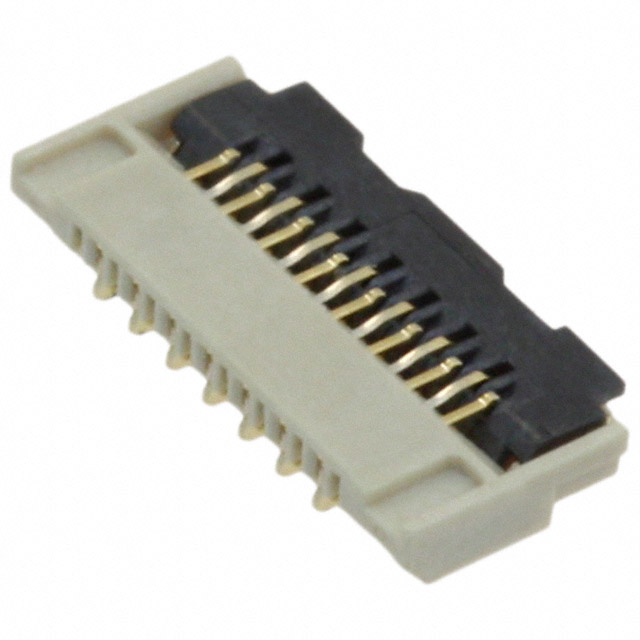

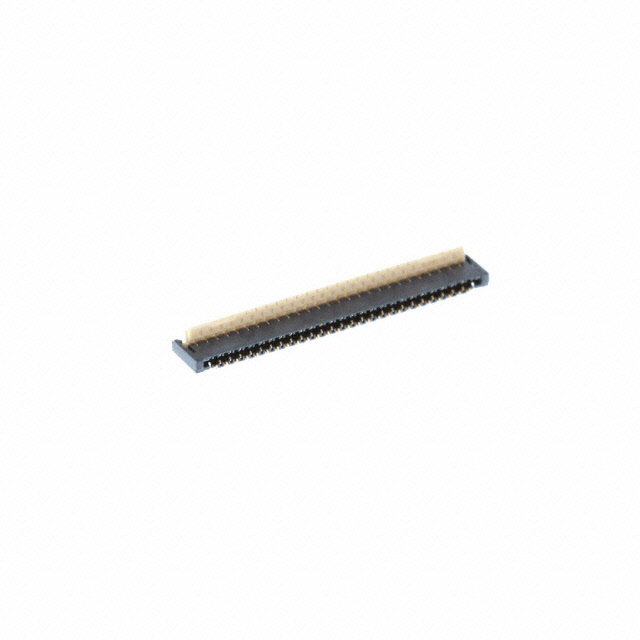

| Part Number | AYF335135 | AYF335165 | AYF335165A | AYF311515 |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | CONN FPC 51POS 0.3MM R/A | CONN FPC 51POS 0.3MM R/A | CONN FPC 51POS 0.3MM R/A | CONN FPC BOTTOM 15POS 0.3MM R/A |
| Series | Y3B | Y3BW | Y3BW | Y3FT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
AYF330735
Panasonic Electric Works

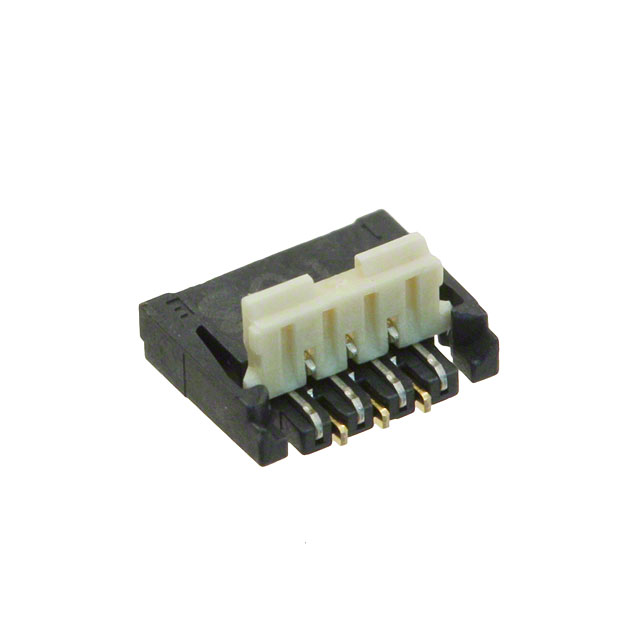

AYF330735A
Panasonic Electric Works

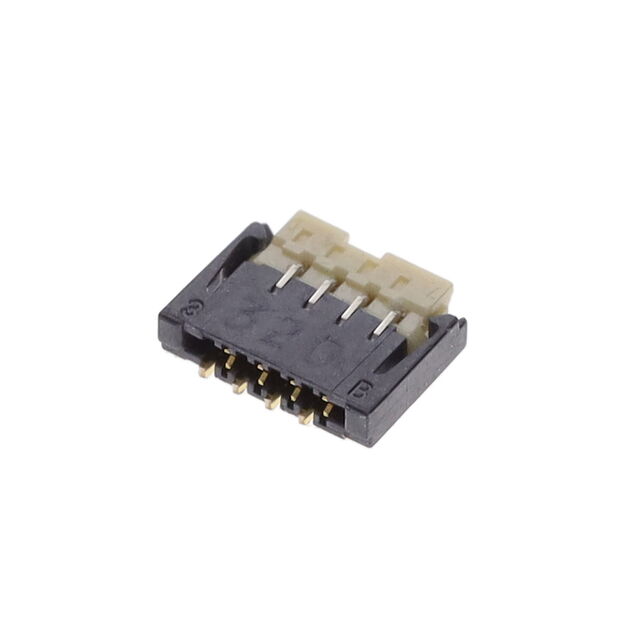

AYF330835
Panasonic Electric Works

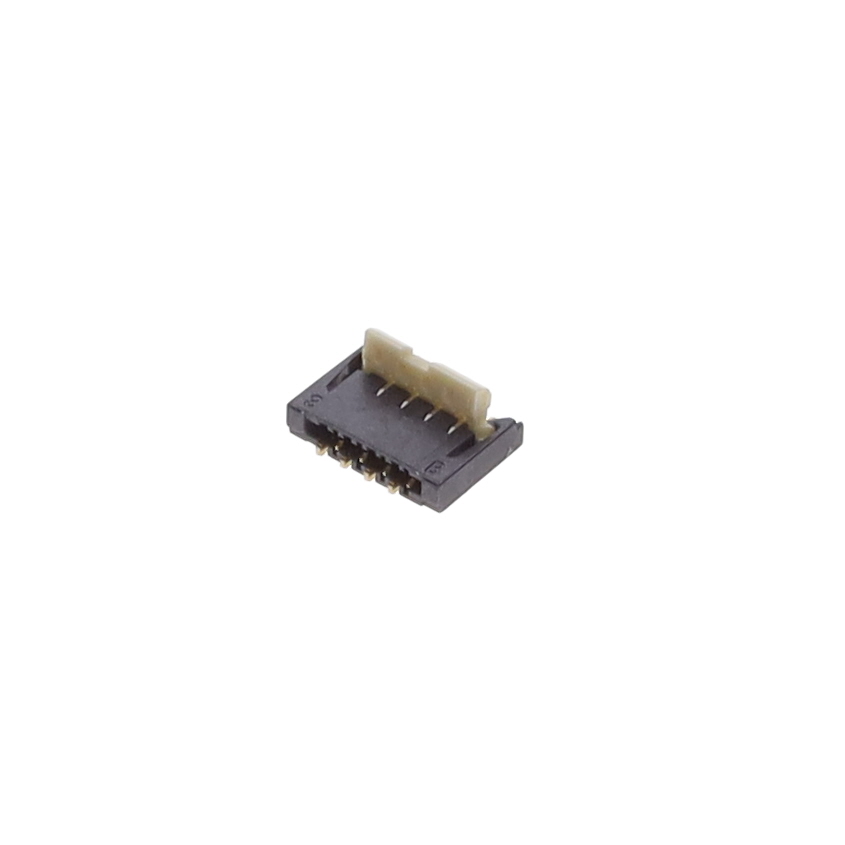

AYF330835A
Panasonic Electric Works

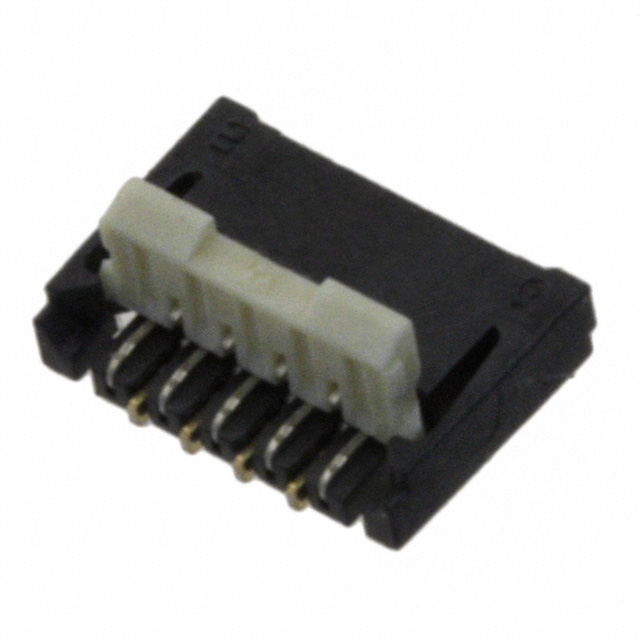

AYF330935
Panasonic Electric Works
AYF330935A
Panasonic Electric Works

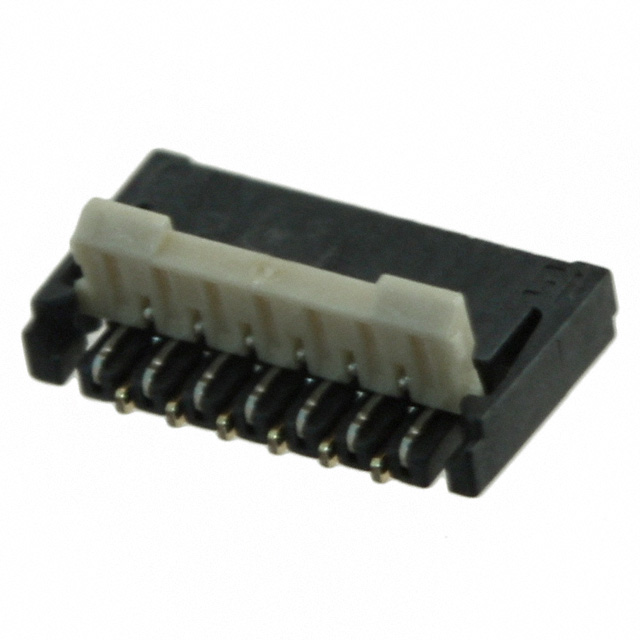

AYF331135
Panasonic Electric Works
AYF331135A
Panasonic Electric Works
AYF331165
Panasonic Electric Works

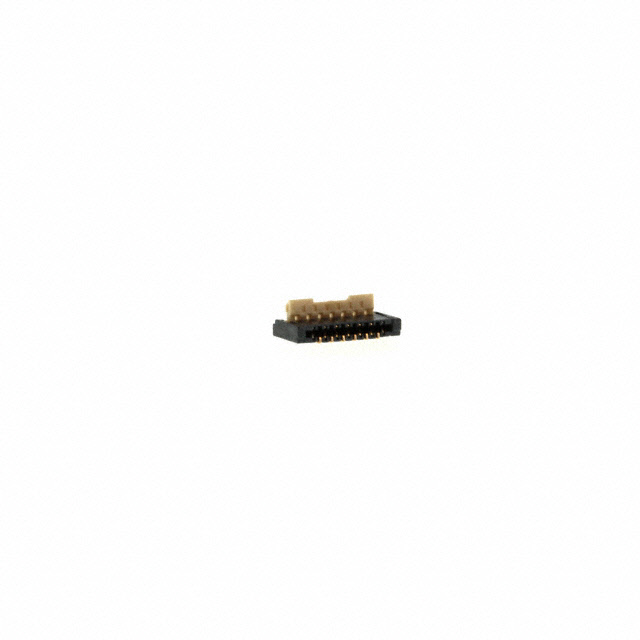

AYF331165A
Panasonic Electric Works
AYF331335
Panasonic Electric Works
AYF331335A
Panasonic Electric Works

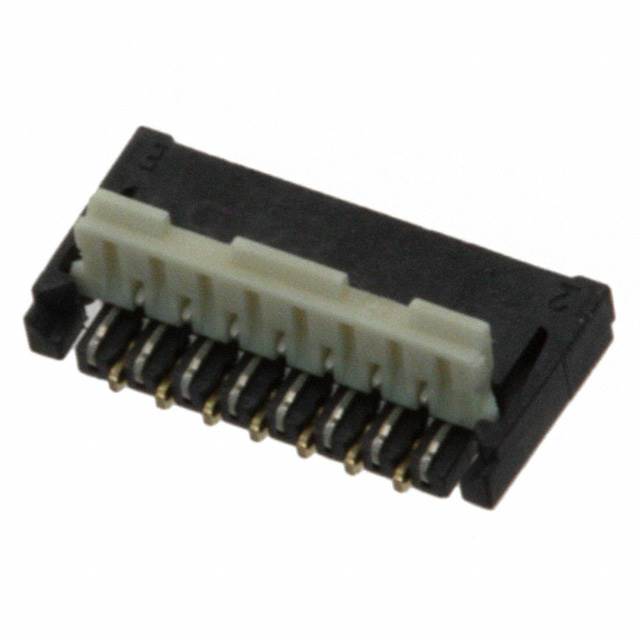

AYF331535
Panasonic Electric Works
AYF331535A
Panasonic Electric Works
AYF331735
Panasonic Electric Works
AYF331735A
Panasonic Electric Works

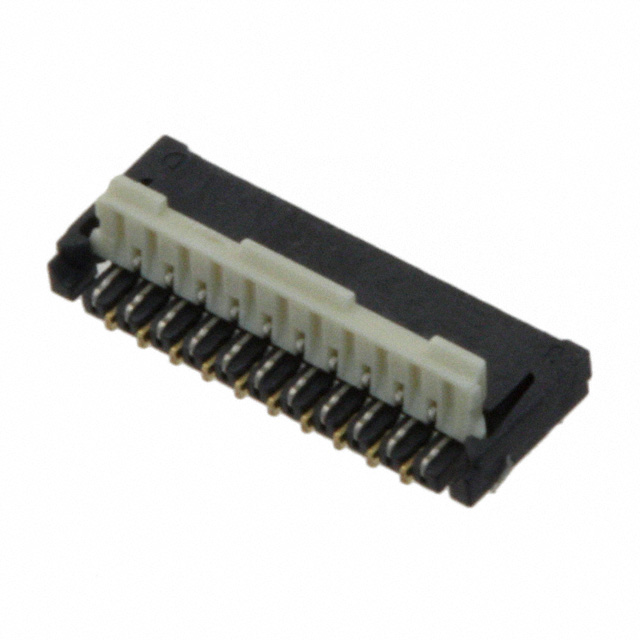

AYF332135
