Product CatalogPart Number
AZ2150-1C-110DF
Manufacturer
American ZettlerDescription
RELAY GEN PURPOSE SPDT 40A 110V
Datasheet
DatasheetPackage
-
In Stock
66,955 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ2150-1C-110DF
AZ2150-1C-110DF
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 110VDC Coil Through Hole
Quick Inquiry
AZ2150-1C-110DF
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZ2150 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 110VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 300VAC, 30VDC - Max |
| Load - Max Switching | 12000VA, 1200W |
| Coil Current | 8.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 82.5 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 12 ms |
| Release Time | 5 ms |
| Operating Temperature | -55°C ~ 105°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 13.45 kOhms |
| Base Product Number | AZ2150-1C |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | AZ2150-1C-110D | AZ2150-1C-110DE | AZ2150-1C-110DEF | AZ2150-1C-12D |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 40A 110V | RELAY GEN PURPOSE SPDT 40A 110V | RELAY GEN PURPOSE SPDT 40A 110V | RELAY GEN PURPOSE SPDT 40A 12V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
AZ2150-1A-110D
American Zettler
AZ2150-1A-110DE
American Zettler
AZ2150-1A-110DEF
American Zettler
AZ2150-1A-110DF
American Zettler
AZ2150-1A-12D
American Zettler
AZ2150-1A-12DE
American Zettler
AZ2150-1A-12DEF
American Zettler
AZ2150-1A-12DF
American Zettler

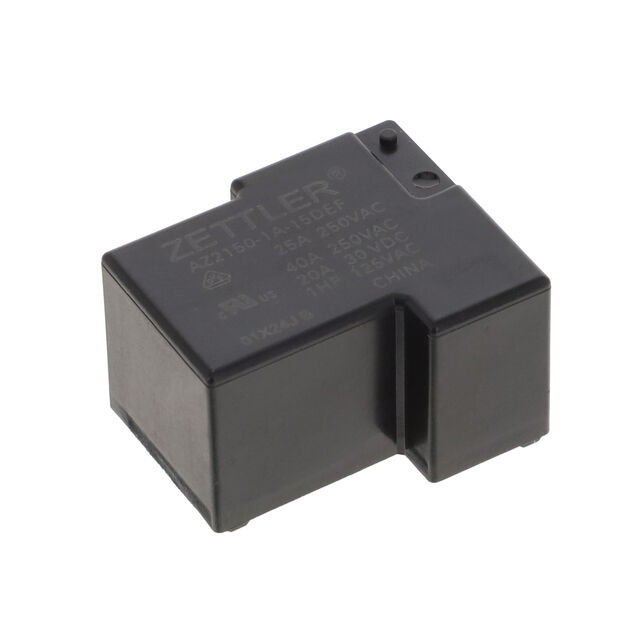

AZ2150-1A-15DE
