AZ2280-1C-6D
Manufacturer
American ZettlerDescription
RELAY GEN PURPOSE SPDT 20A 6V
Datasheet
DatasheetPackage
-
In Stock
32,408 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ2280-1C-6D
AZ2280-1C-6D
lmages are for reference only.Payment Methods
Delivery Services

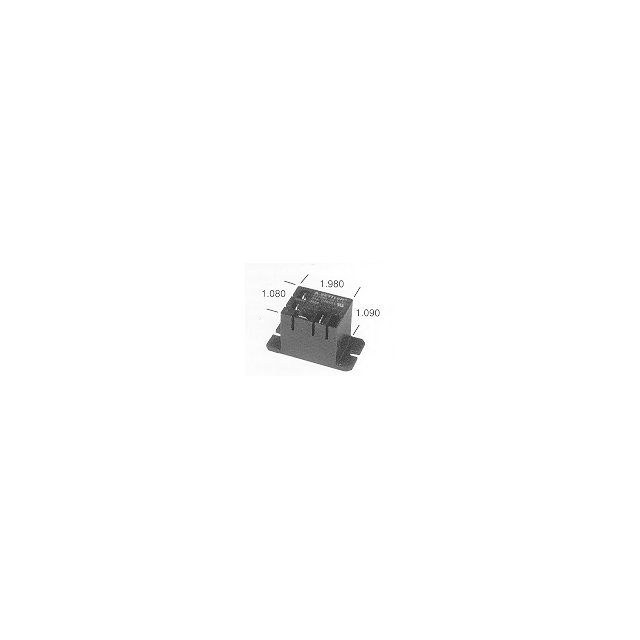

General Purpose Relay SPDT (1 Form C) 6VDC Coil Chassis Mount
Quick Inquiry
AZ2280-1C-6D
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZ2280 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 6VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC, 28VDC - Max |
| Load - Max Switching | 11080VA, 840W |
| Coil Current | 150 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUR, UL, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 40 Ohms |
| Base Product Number | AZ2280-1C |
