Product CatalogPart Number
AZ2700-2A-6AW
Manufacturer
American ZettlerDescription
RELAY GEN PURPOSE DPST 30A 6V
Datasheet
DatasheetPackage
-
In Stock
35,908 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ2700-2A-6AW
AZ2700-2A-6AW

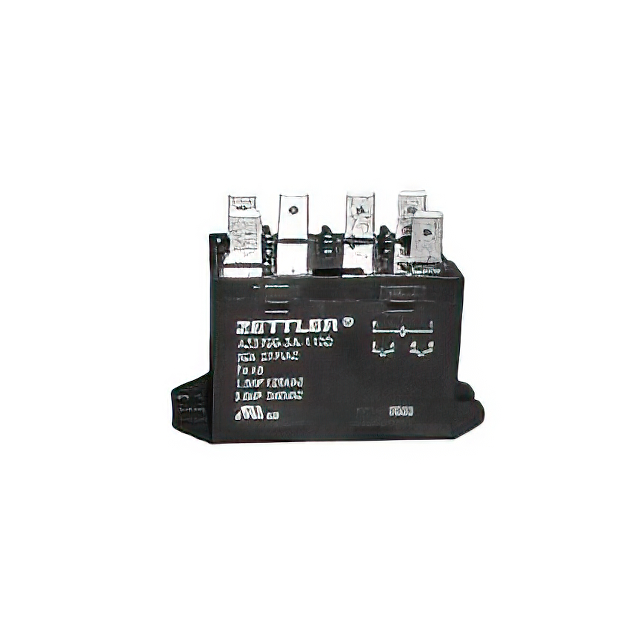

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 6VAC Coil Chassis Mount
Quick Inquiry
AZ2700-2A-6AW
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZ2700 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 6VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 400VAC, 150VDC - Max |
| Load - Max Switching | 8310VA, 840W |
| Coil Current | 319 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 4.8 VAC |
| Must Release Voltage | 0.9 VAC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUR, TUV, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 18.809 Ohms |
| Base Product Number | AZ2700-2A |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | AZ2700-2A-6A | AZ2700-2A-6ATF | AZ2700-2A-6ATWF | AZ2700-2A-110D |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPST 30A 6V | RELAY GEN PURPOSE DPST 30A 6V | RELAY GEN PURPOSE DPST 30A 6V | RELAY GEN PURPOSE DPST 30A 110V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Box | Box | Box | Box |
